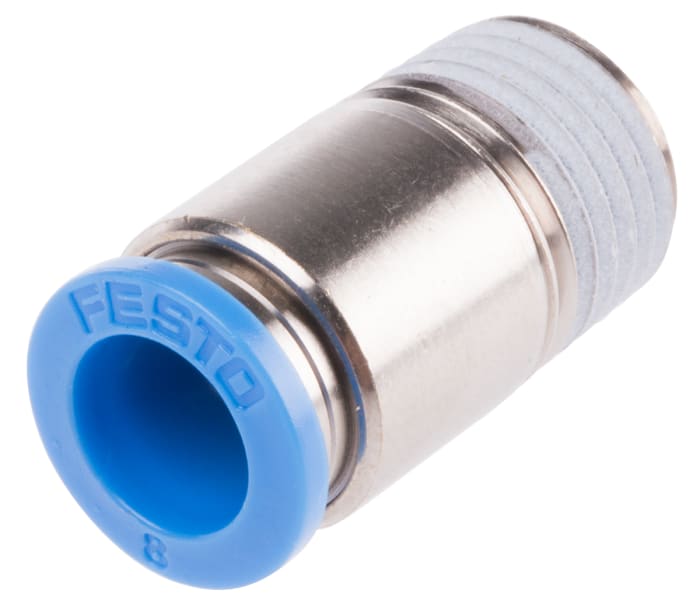

Festo QS Series Straight Threaded Adaptor, R 1/4 Male to Push In 8 mm, Threaded-to-Tube Connection Style, 153005
Technical Document
Specifications
Brand
FestoConnector A
R 1/4 Male
Connector B
Push In 8 mm
Pneumatic Fitting Type
Straight Threaded Adaptor
Connection Style
Threaded-to-Tube
Threaded Connection
R 1/4 Male
Manufacturer Series
QS
Inlet Port
R 1/4 Male
Number of Inlet Ports
1
Model Number p
153005
Model Number (p)
153005
Outlet Port
Push In 8 mm
Number of Outlet Ports
1
Thread Material
Brass
Chemical Resistant
No
Maximum Operating Pressure
14 bar
Minimum Operating Temperature
-10°C
Finish
Nickel Plated
Maximum Operating Temperature
+80°C
Food Grade
No
Angle
Straight
Mounting Type
Inline
Body Material
Brass
Standards Met
ISO8573-1:2010, RoHS Compliant
Country of Origin
Japan
Product details
FESTO QS Push-in Fittings, Male Thread with External Hex
The Quick Star QS range offer a convenient push-in fitting system for compressed air and water with over 1000+ types of standard and function fittings. These high quality, male threaded to tube adapters offer a variety of Metric, G parallel or R tapered threads and diameters to suit each and every connection.
Features & Benefits
• Maximum flexibility for each pneumatic fitting
• Effortless, quick and simple push-in installation
• Threaded to tube (hose) connection style for use in pneumatic applications
• Wide operating temperature range of -10 to +80°C
• Air pressure ranges of up to 14 bar
• Available with a variety of different thread and diameter connector sizes
• Robust, solid nickel-plated brass with high resistance to corrosion
€ 42.91
€ 42.91 1 Bag of 10 (Exc. Vat)
€ 53.21
€ 53.21 1 Bag of 10 (inc. VAT)
1
€ 42.91
€ 42.91 1 Bag of 10 (Exc. Vat)
€ 53.21
€ 53.21 1 Bag of 10 (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price |
|---|---|
| 1 - 4 | € 42.91 |
| 5 - 9 | € 41.82 |
| 10+ | € 40.69 |
