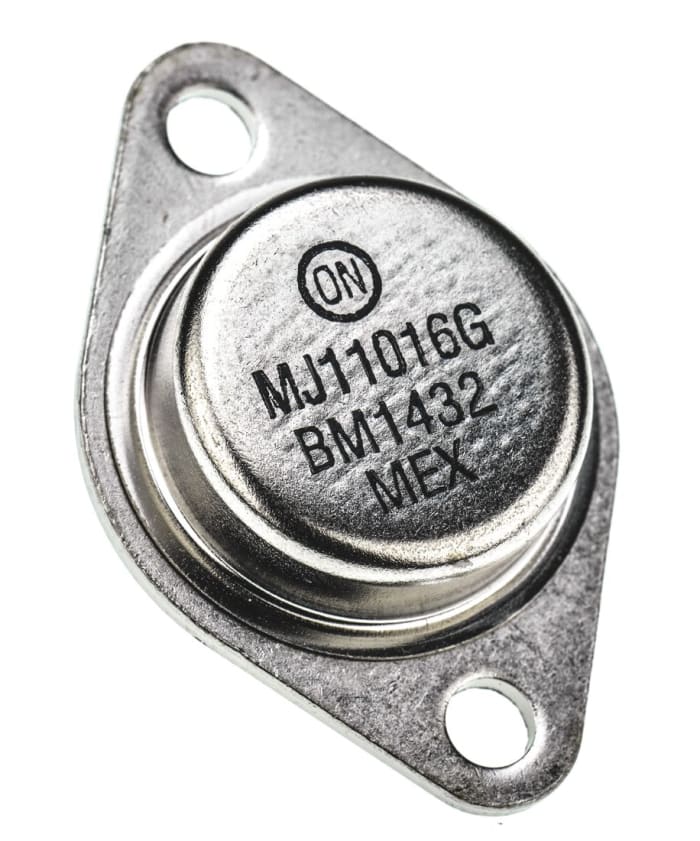

Magnatec MJ11016 NPN Darlington Transistor, 30 A 120 V HFE:200, 3-Pin TO-3

RS Stock No.: 295-179Brand: MagnatecManufacturers Part No.: MJ11016
brand-logo
View all in Darlington Pairs

Technical Document

Specifications

Brand

Magnatec

Transistor Type

NPN

Maximum Continuous Collector Current

30 A

Maximum Collector Emitter Voltage

120 V

Package Type

TO-3

Mounting Type

Through Hole

Pin Count

3

Number of Elements per Chip

1

Minimum DC Current Gain

200

Maximum Power Dissipation

30 W

Height

11.43mm

Dimensions

39.94 x 26.67 x 11.43mm

Length

39.94mm

Width

26.67mm
