WAGO 869-321 869 Series Grey, 2.5mm², Single-Level, Cage Clamp Termination
Technical Document
Specifications
Brand
WagoColour
Grey
Number of Levels
Single
American Wire Gauge
28 → 12AWG
Series
869
Termination Method
Cage Clamp
Cable CSA
2.5mm²
Fused
No
Voltage Rating
500 V
Current Rating
24A
Pitch
5mm
Country of Origin
Germany
Product details
869 Series

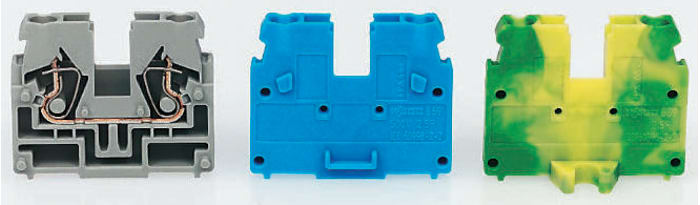

DIN Rail terminals have a modular design with a 5 mm width. The standard 'centre' terminals have a tab mating facility, with the 'end' terminals having flanges for M4 fixing (Ø 4.2 mm). Centre and end terminals can easily be combined with end plates to make up a complete terminal strip.
Features and Benefits
• Rated voltage: 500 V/6 kV
• Front cabling allows for space saving
• Cage clamp® connection
• Jumper bars and marking accessories also available
€ 13.30
€ 1.33 Each (In a Pack of 10) (Exc. Vat)
€ 16.49
€ 1.649 Each (In a Pack of 10) (inc. VAT)
10
€ 13.30
€ 1.33 Each (In a Pack of 10) (Exc. Vat)
€ 16.49
€ 1.649 Each (In a Pack of 10) (inc. VAT)
10
Stock information temporarily unavailable.
Please check again later.
