4D Systems gen4-uLCD-28DT LCD Colour Display Touch Screen, 71.12 mm, 240 x 320 pixel
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
4D SystemsDiagonal Display Size
71.12mm
Product Type
LCD Colour Display
Interface Type
Serial
Current
165mA
Screen Resolution
240 x 320 pixel
Touch Screen
Yes
Viewing Area Dimensions
43 x 58 mm
Touch Screen Type
Resistive
Backlight Type
LED
Minimum Supply Voltage
4V
Maximum Supply Voltage
5.5V
Minimum Operating Temperature
-10°C
Maximum Operating Temperature
60°C
Width
87.3 mm
Height
7.3mm
Depth
57.6mm
Standards/Approvals
CE
Brightness
140cd/m²
Contrast Ratio
250:1
Power Supply Included
No
Display Type
LCD
Series
gen4
Λεπτομέρειες Προϊόντος

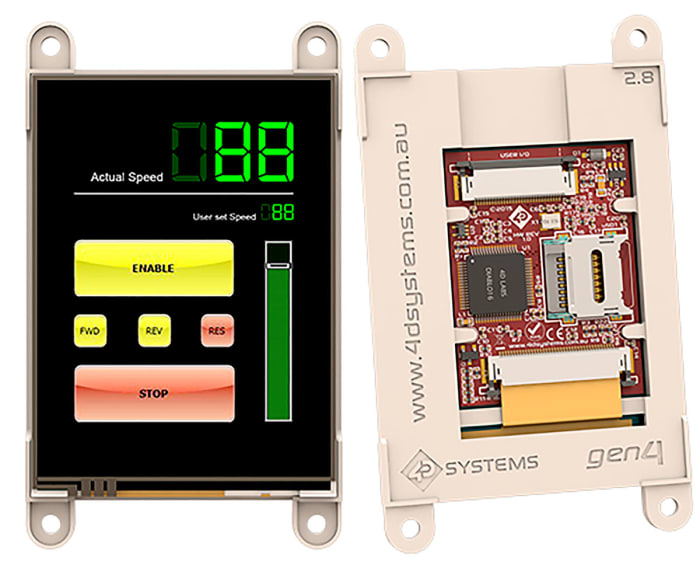

gen4-uLCD-28DT Diablo16 Touch LCD Module
The gen4 series from 4D Systems are TFT LCD Display Modules that offer a compact and easy to integrate display solution. This 2.8” 240 x 320 pixel variant features 4-wire resistive touch for applications requiring a human-machine interface.
The design of the gen4 series makes it simple to integrate into a final product. The display module features a 30-pin ZIF socket to provide an easy connection to an application or motherboard, removing wiring headaches. If space is at a premium the connected board can sit flush on the back of the module as the display circuitry fits comfortably within the mounting base, maintain a slim profile. A micro-SD card connector provides optional multimedia storage and data logging capabilities.
gen4 Display Modules are powered by the 4D Systems Diablo16 processor, an embedded controller that provides built-in graphics, text, image and animation capability. The Diablo16 is fully compatible with the 4D Systems Workshop4 IDE, giving programmers the flexibility of 4 differing development environments.
4D Systems gen4 LCD Display Modules
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
€ 76,30
€ 76,30 Μονάδας (Exc. Vat)Χωρίς Φ.Π.Α
€ 94,61
€ 94,61 Μονάδας Με Φ.Π.Α
1
€ 76,30
€ 76,30 Μονάδας (Exc. Vat)Χωρίς Φ.Π.Α
€ 94,61
€ 94,61 Μονάδας Με Φ.Π.Α
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
1
| Quantity Ποσότητα | Τιμή μονάδας |
|---|---|
| 1 - 9 | € 76,30 |
| 10+ | € 68,18 |
