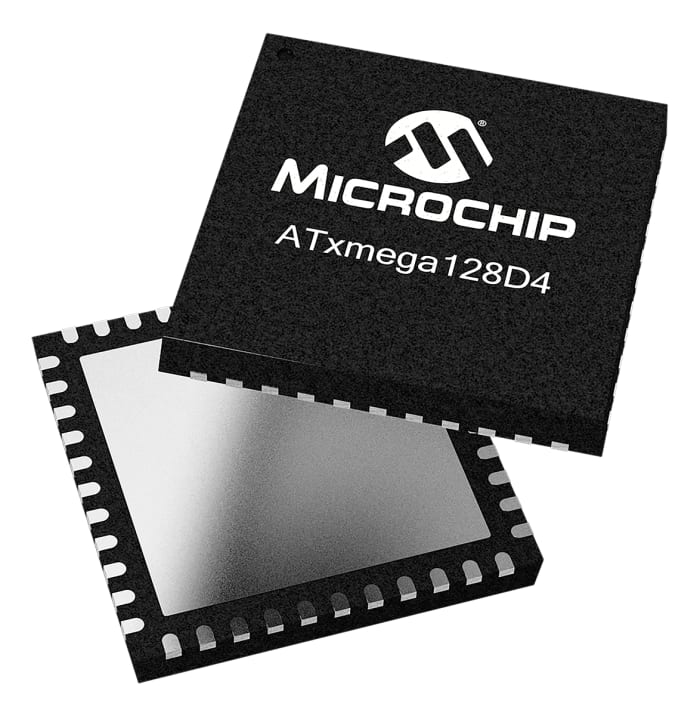

Atmel, 8 bit, 16 bit AVR, AVR Xmega Microcontroller, 32MHz, 2 kB, 136 kB Flash, 44-Pin VQFN
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
AtmelFamily Name
AVR Xmega
Package Type
VQFN
Mounting Type
Surface Mount
Pin Count
44
Device Core
AVR
Data Bus Width
8 bit, 16 bit
Program Memory Size
2 kB, 136 kB
Maximum Frequency
32MHz
RAM Size
8 kB
USB Channels
0
Number of PWM Units
1
Number of SPI Channels
2
Number of USART Channels
2
Typical Operating Supply Voltage
1.6 to 3.6 V
Number of I2C Channels
2
Number of UART Channels
0
Number of CAN Channels
0
Pulse Width Modulation
1(14 Channel)
Dimensions
10 x 10 x 1mm
Width
10mm
Height
1mm
Number of LIN Channels
0
Number of Ethernet Channels
0
Number of PCI Channels
0
Program Memory Type
Flash
Minimum Operating Temperature
-40 °C
Instruction Set Architecture
RISC
ADCs
12 x 12 bit
Length
10mm
Number of ADC Units
1
Maximum Operating Temperature
+85 °C
Χώρα Προέλευσης
Taiwan, Province Of China
Λεπτομέρειες Προϊόντος
8/16-Bit AVR XMEGA Microcontrollers
