Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
Fluke NetworksCable Type
Single & Multimode
Product Type
Fibre Tester
Equipment Type
Fibre Optic Test Kit
Connector Type
LC, ST, SC, FC Port, LC Port
Resolution
0.01 dB
Interface Type
USB
Magnification
200
Plug Type
Type B - North American 3-Pin
Battery Type
Nickel-Metal Hydride
Battery Life
2h
Width
44mm
Height
140mm
Length
72mm
Diameter
6.7mm
Weight
230g
Standards/Approvals
IEC
Power Source
Mains, Battery
Includes
Cord, Adapter, Display, Battery
Minimum Operating Temperature
0°C
Model Number
FTK1375
Maximum Operating Temperature
40°C
Χώρα Προέλευσης
United States
Λεπτομέρειες Προϊόντος

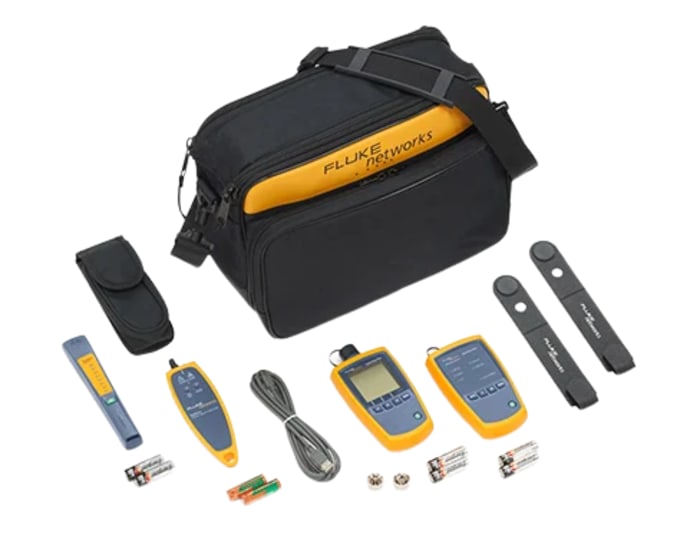

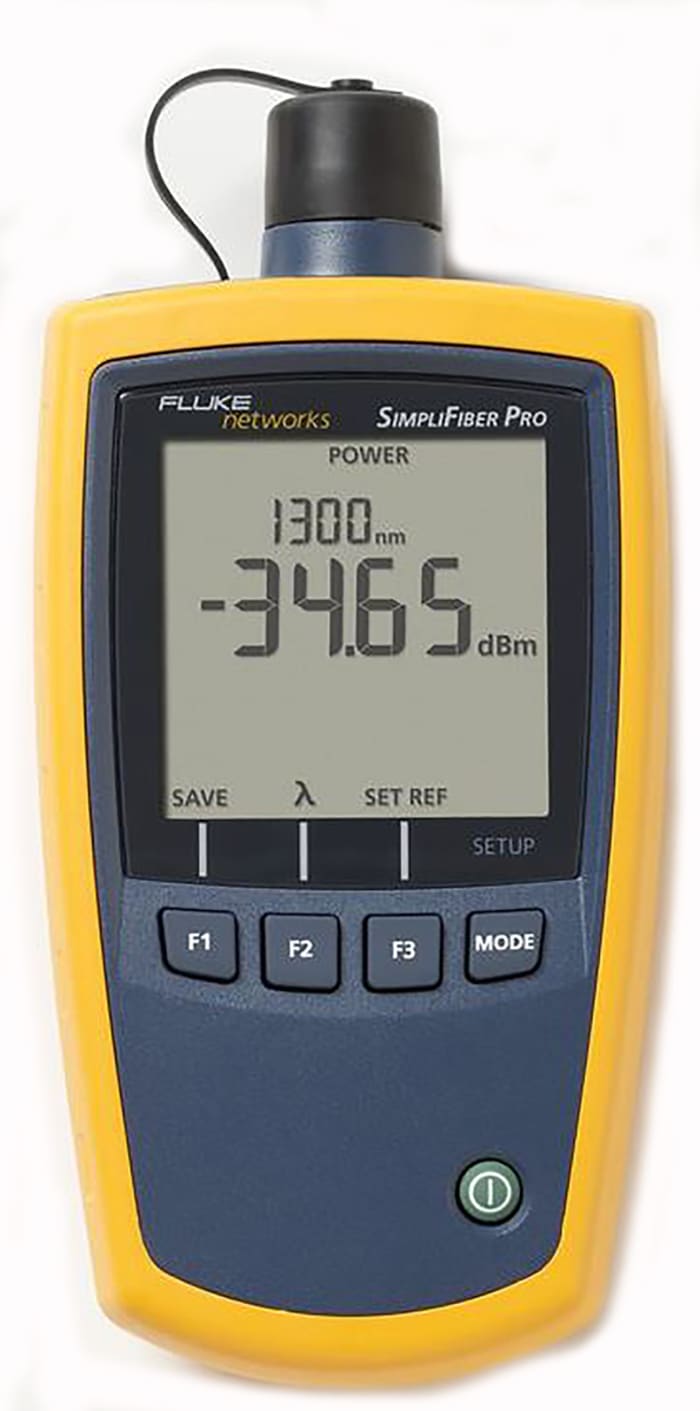

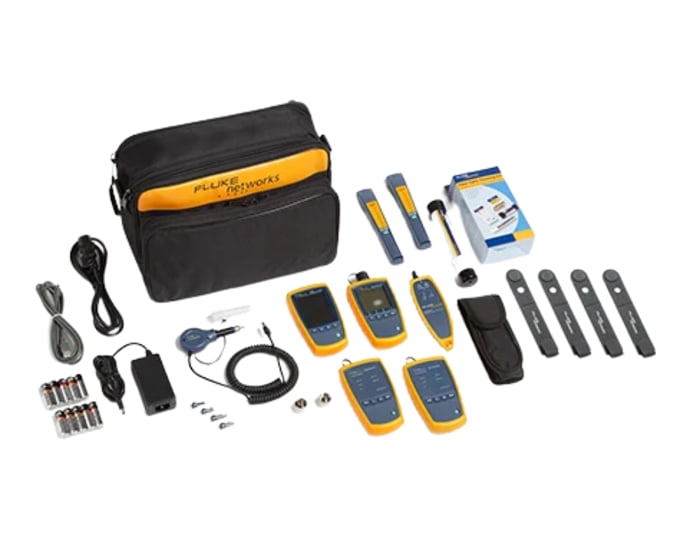

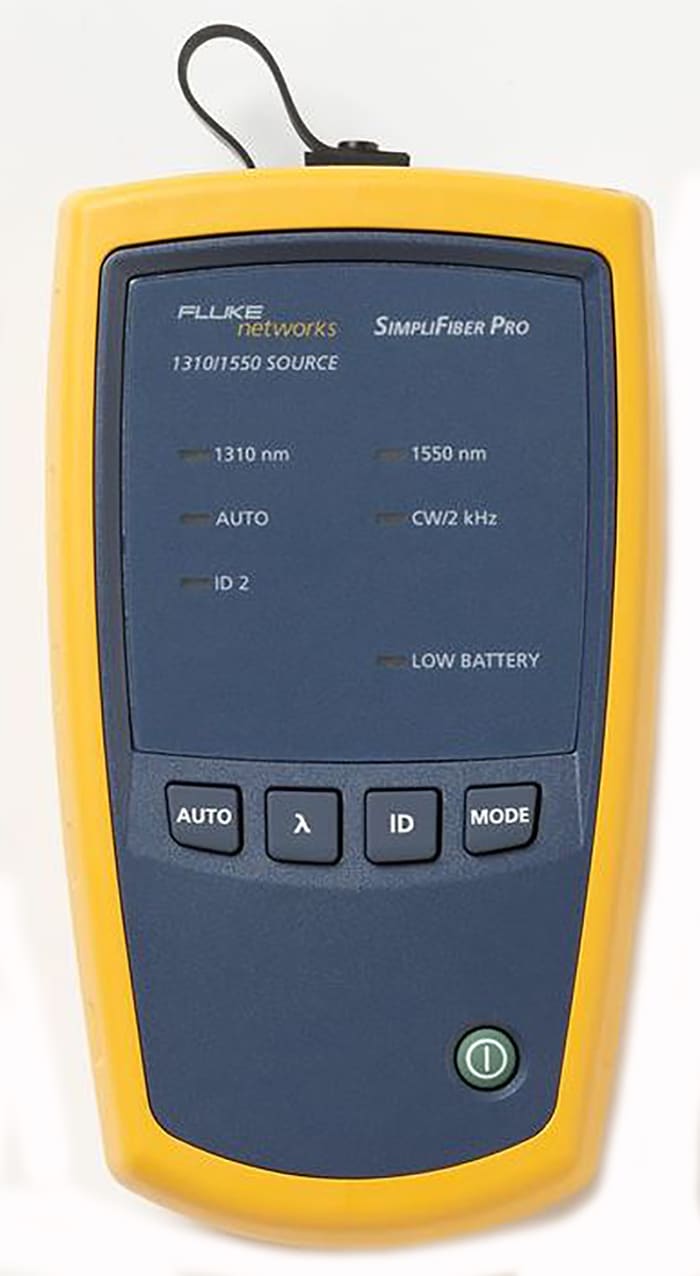

This Fibre tester is a handheld instrument designed for on-site verification and inspection of optical links in mixed copper and Fibre environments. It operates as part of a technicians toolkit to measure optical power and loss, inspect end-faces, and Interface with PC software via USB for result management. The unit accepts common Fibre connectors and runs from mains or rechargeable battery power, supporting field troubleshooting and routine commissioning tasks.
The instrument accepts LC, ST, SC and FC adapters, enabling inspection of the most common connector families used in industrial and data centre cabling.
The internal nickel–metal hydride battery provides around 2 hours of operation on a single charge when used in handheld mode.
It is rated for use between 0°C and 40°C, making it suitable for typical indoor and sheltered outdoor maintenance activities.
Test results can be transferred via the USB Interface to a PC for storage and analysis using cable test management applications.
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
€ 14.248,84
€ 14.248,84 Μονάδας (Exc. Vat)Χωρίς Φ.Π.Α
€ 17.668,56
€ 17.668,56 Μονάδας Με Φ.Π.Α
1
€ 14.248,84
€ 14.248,84 Μονάδας (Exc. Vat)Χωρίς Φ.Π.Α
€ 17.668,56
€ 17.668,56 Μονάδας Με Φ.Π.Α
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
1
