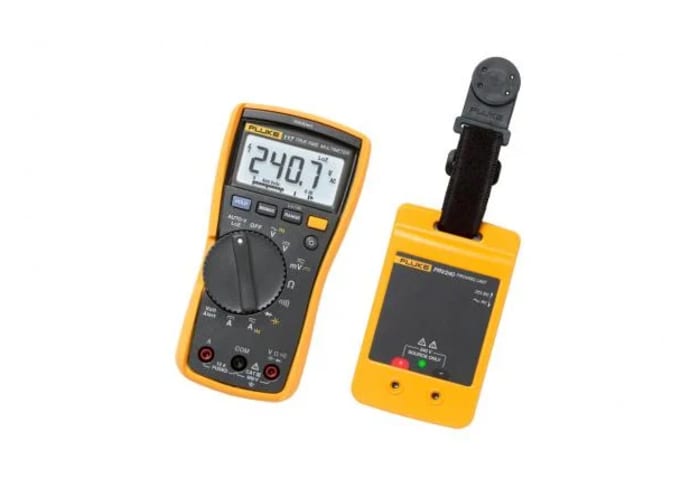

Fluke 117 Multimeter Kit Multimeter Kit

Fluke Multimeter Kit, 10A Current, Electrical Maintenance Application - FLUKE 117/PRV240

This multimeter kit is a handheld electrical test set designed for maintenance and diagnostic tasks in industrial and commercial environments. Supplied with test leads and a proving unit, it supports a wide range of voltage, current, resistance and frequency measurements, and is intended for routine electrical maintenance where portable, safety-rated measurement equipment is required.

Features and Benefits:

• 10A capacity protects against high-current tasks
  True-rms measurement for accurate AC readings
  600V maximum between Terminal and earth ground
  6,000-count display with 33-segment bar graph updates
  9V alkaline battery providing long runtime without backlight
  IP42 ingress protection for routine site use

Applications

• Suitable for electrical maintenance on industrial switchgear
  Ideal for diagnostic testing of control panels and circuits
  Used for measuring AC and DC voltages up to 600V
  Can be used for continuity checks and diode testing
  Suitable for capacitance and frequency verification tasks

What safety standards does the kit meet?

It holds approvals including TUV, CSA, VDE, CE and UL and meets IEC 61010-1 with CAT III 600V, 10A ratings.

How does the unit handle temperature extremes during storage and operation?

It operates from -10°C to +50°C and can be stored between -40°C and +60°C.

What input protections and fusing are provided for the current ranges?

The A input uses an 11A, 1000V fuse (where fitted) with high interrupt rating and the design limits overload to 20A for 30 s on designated ranges.

How is measurement accuracy maintained across varying humidity and altitude?

Accuracy is specified for one year after calibration at 18°C-28°C, humidity and altitude operating limits are defined to ensure specified performance.
