HARTING D-Sub Filter 15 Way Through Hole D-sub Connector Socket, 2.84mm Pitch

Κωδικός Προϊόντος της RS: 843-6129Κατασκευαστής: HARTINGΚωδικός Κατασκευαστή: 09642127230
brand-logo
Προβολή όλων σε D Sub Connectors

Τεχνικό φυλλάδιο

Προδιαγραφές

Brand

Harting

Number Of Contacts

15

Gender

Female

Body Orientation

Straight

Mounting Type

Through Hole

Pitch

2.84mm

Termination Method

Solder

Current Rating

7.5A

Voltage Rating

100.0 V

Length

39.1mm

Width

12.5mm

Depth

17.4mm

Series

D-Sub Filter

Dimensions

39.1 x 12.5 x 17.4mm

Χώρα Προέλευσης

Canada

Λεπτομέρειες Προϊόντος

Stamped solder pins, straight with grounding board locks

Harting D Sub High Density

The high density range exceeds the contact capacity of a standard subminiature D connector by 70%.

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more
Μπορεί να σας ενδιαφέρει

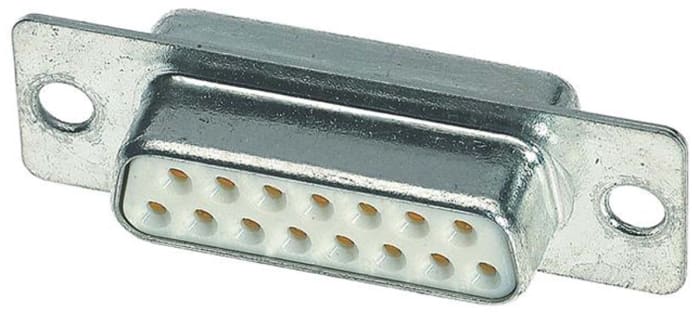

HARTING D-Sub Filter 15 Way Straight Panel Mount D-Sub Connector Female
