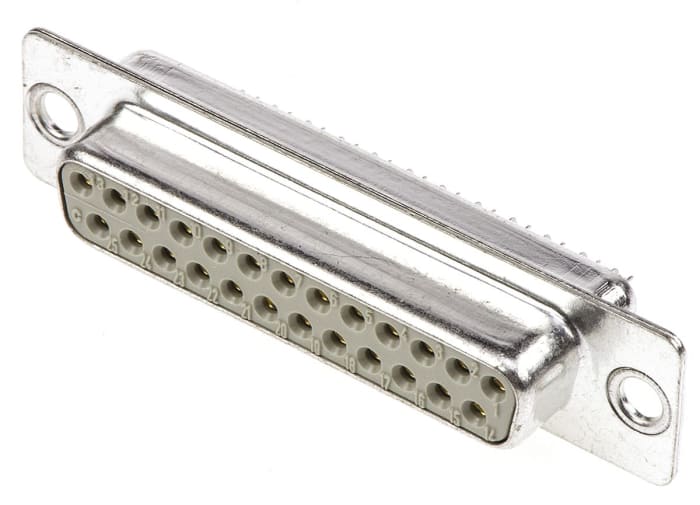

HARTING 25 Way Panel Mount D-sub Connector Socket, 2.77mm Pitch
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
HartingNumber Of Contacts
25
Gender
Female
Body Orientation
Straight
Mounting Type
Panel Mount
Pitch
2.77mm
D Connector Type
Standard D-Sub
Termination Method
Solder
D-Sub Shell Size
B
Current Rating
6.5A
Housing Material
Steel
Length
53.2mm
Width
12.5mm
Depth
17.0mm
Dimensions
53.2 x 12.5 x 17mm
Contact Material
Copper Alloy
Minimum Operating Temperature
-55.0°C
Maximum Operating Temperature
+125°C
Χώρα Προέλευσης
China
Λεπτομέρειες Προϊόντος
Harting DIN 41652 Solder Bucket D-Sub Connectors, Stamped Contacts
Brought to you by Harting, this range of DIN 41652 D-sub plug and socket connectors have stamped female contacts and solder bucket terminals. Suitable for soldering to stranded or single core wires, these D-sub plug and socket connectors have a robust metal shell (plug also has dimples) with 3.1mm mounting holes.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
Παρακαλούμε ελέγξτε ξανά αργότερα.
€ 8,07
Μονάδας (Exc. Vat)Χωρίς Φ.Π.Α
€ 10,01
Μονάδας Με Φ.Π.Α
Standard
1
€ 8,07
Μονάδας (Exc. Vat)Χωρίς Φ.Π.Α
€ 10,01
Μονάδας Με Φ.Π.Α
Standard
1
Αγοράστε μαζικά
| Quantity Ποσότητα | Τιμή μονάδας |
|---|---|
| 1 - 9 | € 8,07 |
| 10 - 19 | € 7,86 |
| 20 - 49 | € 7,61 |
| 50+ | € 7,06 |
