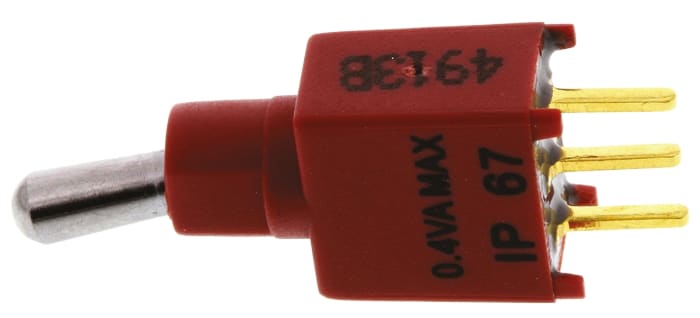

KNITTER-SWITCH Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal, 20V

Κωδικός Προϊόντος της RS: 711-8363Κατασκευαστής: KNITTER-SWITCHΚωδικός Κατασκευαστή: TST 1D
brand-logo

Τεχνικό φυλλάδιο

Προδιαγραφές

Contact Configuration

SPDT

Switch Operation

On-On

Contact Current Rating

0.4VA

Mounting Type

PCB

Terminal Type

Through Hole

IP Rating

IP67

Actuator Length

6.1mm

Actuator Material

Chromium Plated Brass

Voltage Rating

20V

Contact Material

Gold Plated Nickel Copper Alloy

Contact Resistance

20mΩ

Mechanical Life

50000Operations

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-30°C

Operating Temperature Range

-30 → +85°C

Χώρα Προέλευσης

Taiwan, Province Of China

Λεπτομέρειες Προϊόντος

Knitter Switch Subminiature Toggle Switches - TST Series

Miniature Lockable Toggle Switches

Approvals

UL E187490
