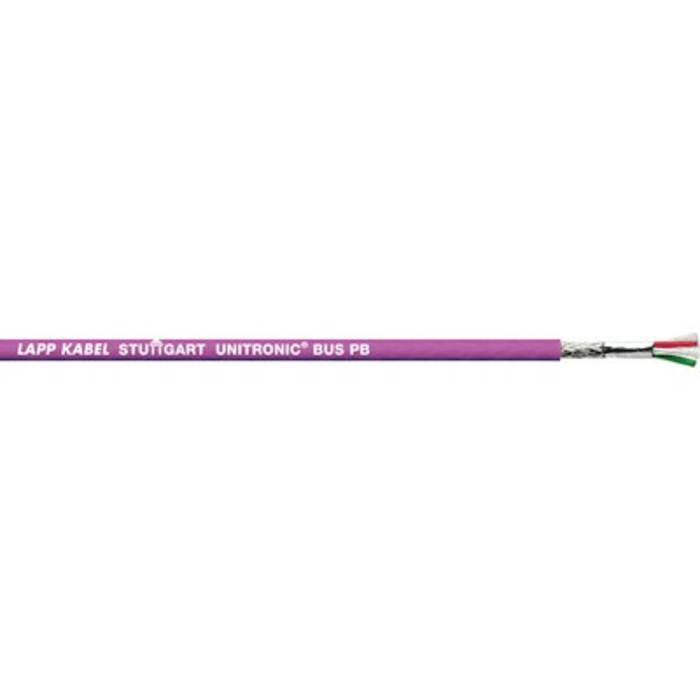

Lapp UNITRONIC BUS PB Data Cable, 2 Cores, 0.64 mm², Screened, 100m, Purple PVC Sheath, 19 AWG
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
LappSeries
UNITRONIC BUS PB
Number of Cores
2
Cross Sectional Area
0.64 mm²
American Wire Gauge
19 AWG
Conductor Material
Bare Copper
Sheath Material
PVC
Sheath Colour
Purple
Screened/Unscreened
Screened
Outer Diameter
7.8mm
Length
100m
Voltage Rating
250 V
CPR Certification
Eca
Standards Met
CSA, UL Listed
Maximum Operating Temperature
+80°C
Fire Behaviour
Halogen Free
Bedding Material
PVC
Minimum Operating Temperature
-40°C
Oil Resistant
Yes
Insulation material
PVC
Conductor Resistance
186 O/km
Cable Shape
Multicore
Χώρα Προέλευσης
Germany
Λεπτομέρειες Προϊόντος
Unitronic® BUS LD, BUS FD P LD, BUS L2/FIP
Standards
DIN 19245 and EN 50170
LAPP Industrial Cable
IBS cables for industrial communications and field bus in sensors / actuators.
€ 390,53
€ 390,53 1 Καρούλι των 100 Μέτρων (Exc. Vat)Χωρίς Φ.Π.Α
€ 484,26
€ 484,26 1 Καρούλι των 100 Μέτρων Με Φ.Π.Α
1
€ 390,53
€ 390,53 1 Καρούλι των 100 Μέτρων (Exc. Vat)Χωρίς Φ.Π.Α
€ 484,26
€ 484,26 1 Καρούλι των 100 Μέτρων Με Φ.Π.Α
1
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
Παρακαλούμε ελέγξτε ξανά αργότερα.
