Molex, 104031 8 Way Push Pull MicroSD Memory Card Connector, Push-in
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
MolexProduct Type
Memory Card Connector
Card Type
MicroSD
Gender
Female
Insertion/Removal Method
Push Pull
Number of Contacts
8
Number of Rows
1
Pitch
1.1mm
Orientation
Straight
Mount Type
Surface Mount
Contact Material
Copper Alloy
Contact Plating
Gold
Minimum Operating Temperature
-25°C
Termination Type
Push-in
Housing Material
Liquid Crystal Polymer
Maximum Operating Temperature
85°C
Standards/Approvals
No
Series
104031
Χώρα Προέλευσης
Korea, Republic Of
Λεπτομέρειες Προϊόντος

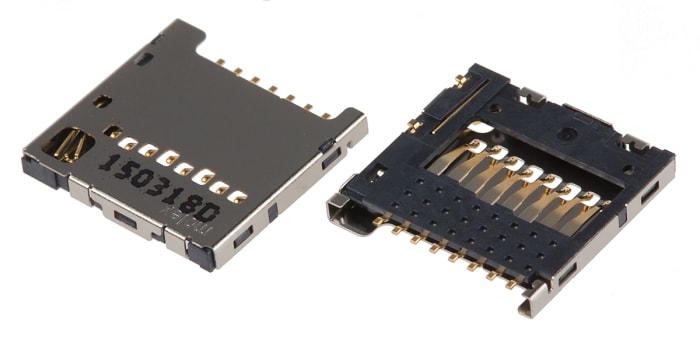

Molex micro SD Memory Card Connector - 104031 Series
104031 series micro SD memory card connector with a 1.10 mm pitch and a low profile height of just 1.42 mm. This micro SD memory card connector has a push-pull mechanism for easy card insertion and removal. A reliable card detect switch function indicates card insertion. The metal shell of this connector has an inner lock which provides secure card retention. The terminals have an inner lead design to prevent contact stubbing and provide a reliable electrical connection. This micro SD memory card connector is designed with tight coplanarity features for high reliability during the reflow soldering process. The outer shell is made from shielded stainless steel which provides protection against EMI interference. Retention features on the connector shell provide a secure connection to the PCB.
Memory Card Connectors
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
€ 8,82
€ 4,41 Μονάδας (Σε ένα πακέτο των 2) (Exc. Vat)Χωρίς Φ.Π.Α
€ 10,94
€ 5,468 Μονάδας (Σε ένα πακέτο των 2) Με Φ.Π.Α
2
€ 8,82
€ 4,41 Μονάδας (Σε ένα πακέτο των 2) (Exc. Vat)Χωρίς Φ.Π.Α
€ 10,94
€ 5,468 Μονάδας (Σε ένα πακέτο των 2) Με Φ.Π.Α
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
2
