Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
MolexSeries
43045
Product Type
PCB Header
Current
8.5
Pitch
3mm
Housing Material
High Temperature Thermoplastic
Number of Contacts
8
Number of Rows
2
Orientation
Right Angle
Shrouded/Unshrouded
Shrouded
Connector System
Wire-to-Board
Mount Type
Surface
Contact Material
Brass
Contact Plating
Tin
Row Pitch
3mm
Termination Type
Solder
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
105°C
Contact Gender
Male
Standards/Approvals
No
Mating Pin Length
3mm
Voltage
600V
Λεπτομέρειες Προϊόντος

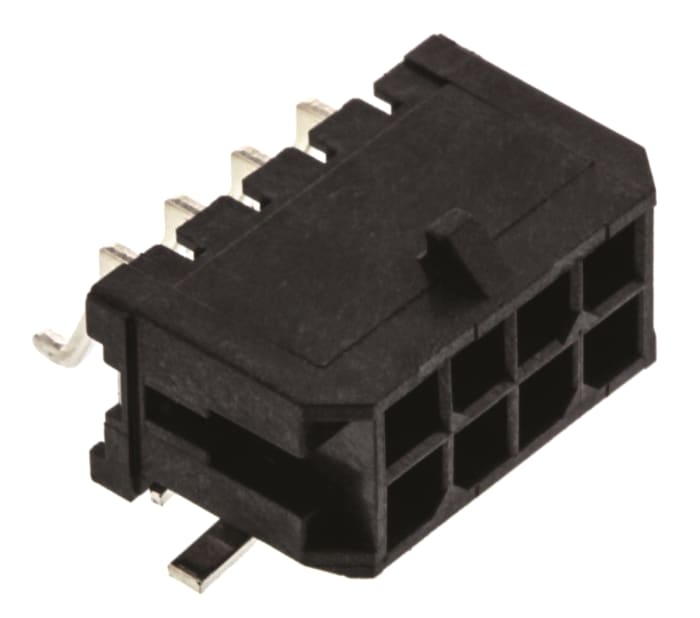

This PCB header is a high-performance component designed for surface mount applications. Featuring a 3.0mm pitch, it consists of 8 contacts arranged in a dual-row format. The right angle orientation and shrouded design offer enhanced usability and integration for various electronic assemblies. Constructed from Durable brass and plated with tin, it ensures reliable connectivity in demanding environments.
Yes, the solder process capability includes a maximum temperature of 260°C for up to 30 seconds, accommodating lead-free processes.
The recommended PCB thickness for this component is 1.60mm, ensuring secure retention on the board.
The component is designed for up to 30 mating cycles, which supports long-term reliability in frequent use scenarios.
Yes, it mates seamlessly with the 43025 Micro-Fit 3.0™ receptacle, ensuring flexibility in design choices.
The component complies with the 94V-0 flammability rating, making it suitable for applications where fire safety is a concern.
