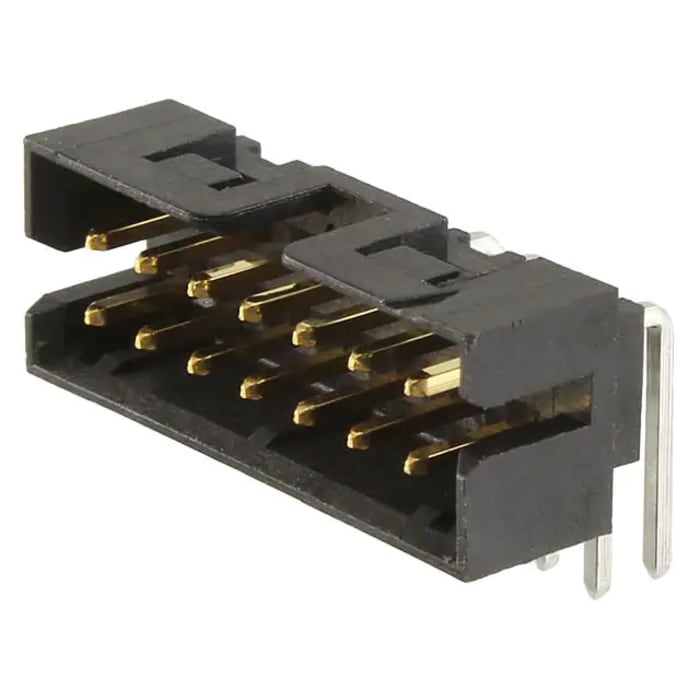

Molex Milli-Grid Series Right Angle Through Hole PCB Header, 14 Contact(s), 2 mm Pitch, 2 Row, Shrouded

Κωδικός Προϊόντος της RS: 213-4792Κατασκευαστής: MolexΚωδικός Κατασκευαστή: 878335321Distrelec Article No.: 304-57-660
brand-logo
Προβολή όλων σε PCB Headers

Τεχνικό φυλλάδιο

Προδιαγραφές

Brand

Molex

Series

Milli-Grid

Product Type

PCB Header

Pitch

2mm

Current

2A

Number of Contacts

14

Housing Material

Nylon

Number of Rows

2

Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Connector System

Milli Grid Connector System

Mount Type

Through Hole

Contact Material

Phosphor Bronze

Contact Plating

Gold

Minimum Operating Temperature

-55°C

Row Pitch

2mm

Termination Type

Tin

Contact Gender

Male

Tail Pin Length

3.18mm

Maximum Operating Temperature

105°C

Mating Pin Length

3.6mm

Standards/Approvals

CSA LR19980, UL E29179

Voltage

125 V

Χώρα Προέλευσης

Malaysia
