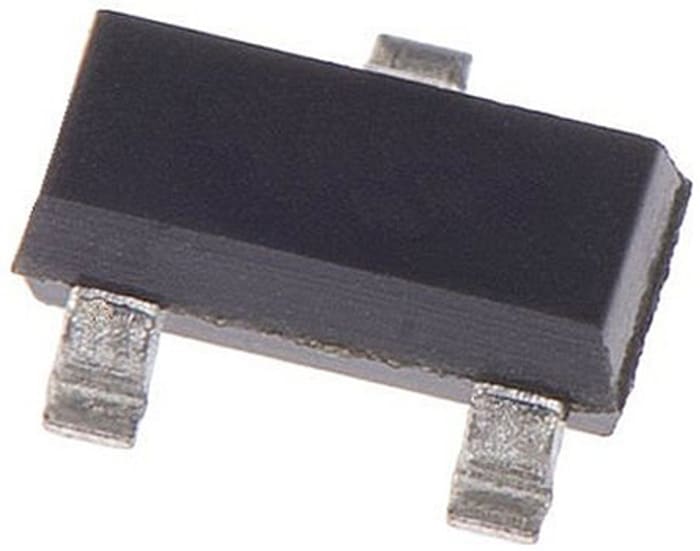

Nexperia 2-Element Uni-Directional ESD Protection Diode, 24 W, 3-Pin SOT-23
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
NexperiaDiode Configuration
Dual
Product Type
ESD Protection Diode
Direction Type
Uni-Directional
Minimum Breakdown Voltage Vbr
5.32V
Mount Type
Surface
Package Type
SOT-23
Maximum Reverse Stand-off Voltage Vwm
3V
Pin Count
3
Peak Pulse Power Dissipation Pppm
24W
Clamping Voltage VC
8V
Minimum Operating Temperature
-55°C
Test Current It
20mA
Maximum Peak Pulse Current Ippm
3A
ESD Protection
Yes
Number of Elements per Chip
2
Maximum Operating Temperature
150°C
Height
1.1mm
Length
3mm
Standards/Approvals
No
Series
MMBZ
Maximum Reverse Leakage Current
5μA
Automotive Standard
AEC-Q101
Λεπτομέρειες Προϊόντος
MMBZ Series, Low Capacitance Double ESD Protection Diodes, Nexperia
Unidirectional double ElectroStatic Discharge (ESD) protection diodes in a common anode configuration, encapsulated in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package.
Transient Voltage Suppressors, Nexperia
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
€ 300,00
€ 0,10 Μονάδας (Σε ένα καρούλι των 3000) (Exc. Vat)Χωρίς Φ.Π.Α
€ 372,00
€ 0,124 Μονάδας (Σε ένα καρούλι των 3000) Με Φ.Π.Α
3000
€ 300,00
€ 0,10 Μονάδας (Σε ένα καρούλι των 3000) (Exc. Vat)Χωρίς Φ.Π.Α
€ 372,00
€ 0,124 Μονάδας (Σε ένα καρούλι των 3000) Με Φ.Π.Α
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
3000
