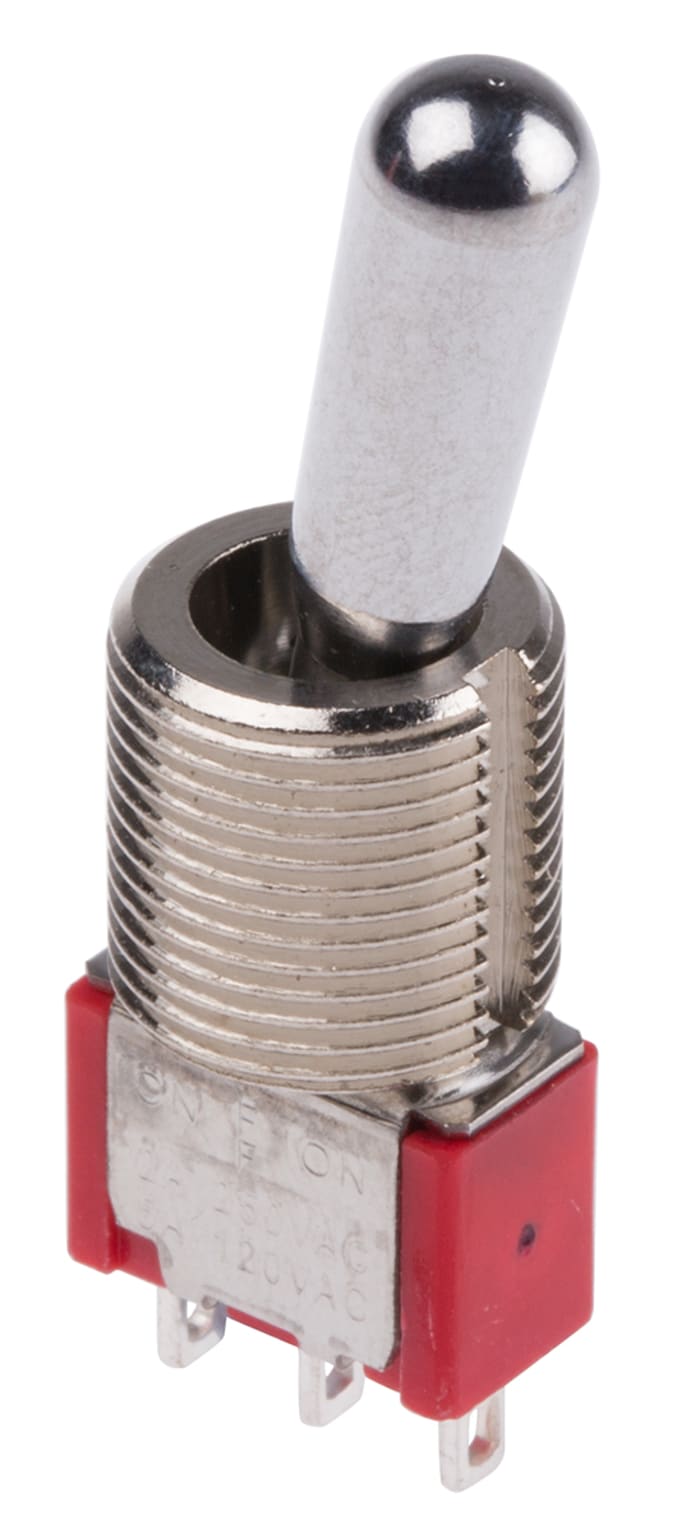

NKK Switches Toggle Switch, Panel Mount, Latching, SPDT, Solder Terminal, 250V ac
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
NKK SwitchesContact Configuration
SPDT
Switch Operation
Latching
Contact Current Rating
6 A
Mounting Type
Panel Mount
Terminal Type
Solder
Illuminated
No
Panel Cut Out Diameter
12.5mm
Actuator Length
17.5mm
Voltage Rating
250V ac
Contact Material
Pure Silver (Stationary), Silver Alloy (Movable)
Contact Resistance
10mΩ
Maximum Operating Temperature
+85°C
Minimum Operating Temperature
-10°C
Operating Temperature Range
-10 → +85°C
Χώρα Προέλευσης
China
