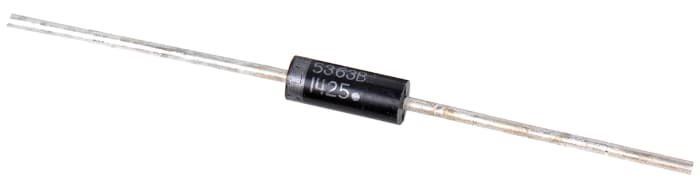

onsemi, 30V Zener Diode 5% 5 W Through Hole 2-Pin DO-15
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
ON SemiconductorNominal Zener Voltage
30V
Diode Configuration
Single
Mounting Type
Through Hole
Number of Elements per Chip
1
Maximum Power Dissipation
5 W
Package Type
DO-15
Zener Type
Voltage Regulator
Zener Voltage Tolerance
5%
Pin Count
2
Test Current
40mA
Maximum Zener Impedance
8Ω
Maximum Reverse Leakage Current
500nA
Dimensions
8.89 x 3.68 x 3.68mm
Minimum Operating Temperature
-65 °C
Maximum Operating Temperature
+200 °C
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
P.O.A.
Μονάδας (Σε ένα πακέτο των 10) (Exc. Vat)Χωρίς Φ.Π.Α
10
P.O.A.
Μονάδας (Σε ένα πακέτο των 10) (Exc. Vat)Χωρίς Φ.Π.Α
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
10
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
