RS PRO 2 Core, 0.08 mm² CSA Screened, 4mm od, 100m, Grey
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
RS ProNumber of Cores
2
Cross Sectional Area
0.08 mm²
Screened/Unscreened
Screened
Insulation material
PE
Outer Diameter
4mm
Length
100m
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+60°C
Sheath Colour
Grey
American Wire Gauge
28 AWG
Conductor Strand Type
Stranded
Core Strands
10/0.1 mm
Conductor Material
Copper
Voltage Rating
30 V
Size of Strands
0.1 mm
Capacitance Core To Screen
126pF/m
Screen Type
Twin Lapped Screen
Number of Strands
10
Sheath Material
Polyvinyl Chloride PVC
Conductor Resistance
237 Ω/km
Cable Shape
Multicore
Χώρα Προέλευσης
China
Λεπτομέρειες Προϊόντος

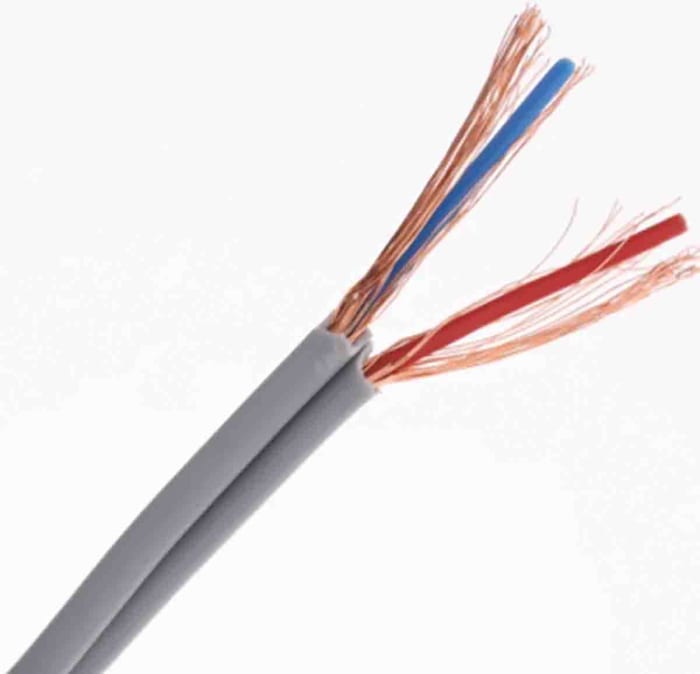

Individual Twin Lapped Screen Figure-of-Eight PVC Cable
Two individually screened plain copper stranded 10//0.36 mm conductors laid side by side in a flat figure 8 grey PVC outer sheath.
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
Παρακαλούμε ελέγξτε ξανά αργότερα.
P.O.A.
1
P.O.A.
1
