Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
RS ProAnti Vibration Mount Type
Female Buffer Foot
Product Type
Anti-Vibration Mount
Thread Size
M5
Overall Height
15mm
Outside Diameter
20mm
Minimum Operating Temperature
-25°C
Material
Natural Rubber
Maximum Operating Temperature
70°C
Mount Type
Bobbin
Standards/Approvals
RoHS
Shore Hardness
50 Shore A
Compression Load
17.97kg
Compression Deflection
1.5mm
Series
AV Type C
Χώρα Προέλευσης
India
Λεπτομέρειες Προϊόντος

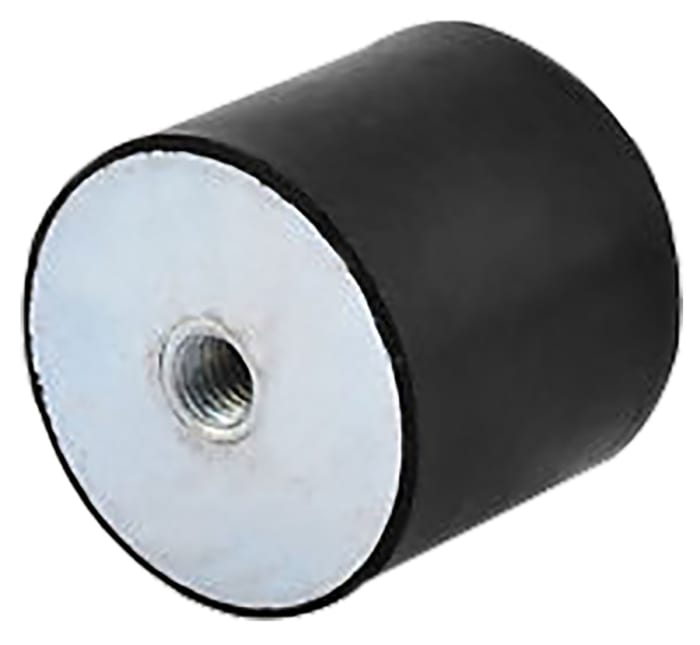

RS Pro cylindrical female to female anti-vibration mounts made from a natural rubber designed to be simple and economical to fix. The anti-vibration mounts achieve high vibration damping in both shear and compression.
