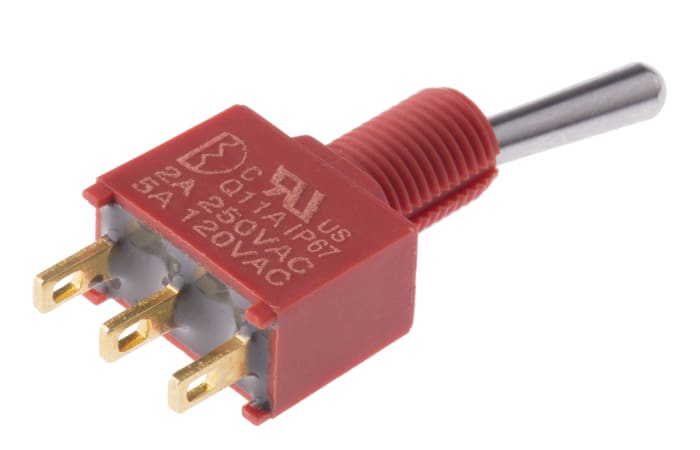

RS PRO Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal, 12 V dc, 112 V ac
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
RS ProProduct Type
Toggle Switch
Contact Configuration
SPDT
Switch Operation
On-On
Switch Contact Current
5A
Mount Type
Panel
Terminal Type
Solder
IP Rating
IP67
Illuminated
No
Actuator Length
12.7mm
Minimum Operating Temperature
-30°C
Contact DC Voltage
12V dc
Contact AC Voltage
112V ac
Actuator Material
Chrome Plated Brass
Maximum Operating Temperature
85°C
Switch Configuration
On-None-Off
Length
12.7mm
Standards/Approvals
CE, UL, RoHS, CSA
Series
RS
Mechanical Life
30000Cycles
Λεπτομέρειες Προϊόντος
IP67 Sealed Miniature Toggle Switches - RS Series
IP67 rated RS series of PCB mount miniature toggle switches with a low contact resistance and are available with either Gold (Q) or Silver (R) contact material. The RS series miniature toggle switches have a minimum insulation resistance of 1000MΩ and a minimum dielectric strength of 1000 Vrms at sea level.
