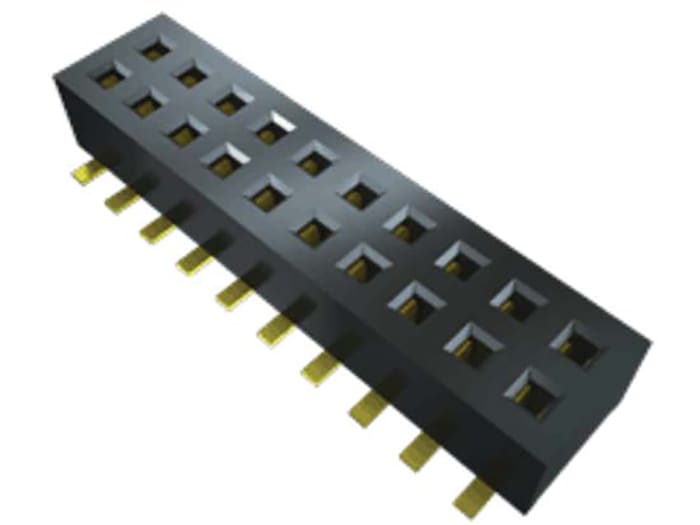

Samtec CLP Series Straight Surface PCB Socket, 10-Contact, 2 Row, 1.27 mm Pitch Solder

Κωδικός Προϊόντος της RS: 197-6612Κατασκευαστής: SamtecΚωδικός Κατασκευαστή: CLP-110-02-L-D-BE
brand-logo
Προβολή όλων σε PCB Sockets

Τεχνικό φυλλάδιο

Προδιαγραφές

Brand

Samtec

Number of Contacts

10

Product Type

PCB Socket

Number of Rows

2

Sub Type

PCB Socket

Pitch

1.27mm

Current

3.4A

Termination Type

Solder

Housing Material

Liquid Crystal Polymer

Mount Type

Surface

Orientation

Straight

Connector System

Board-to-Board

Voltage

395 V

Series

CLP

Minimum Operating Temperature

-55°C

Row Pitch

1.27mm

Maximum Operating Temperature

125°C

Contact Material

Phosphor Bronze

Contact Plating

Gold

Standards/Approvals

No
