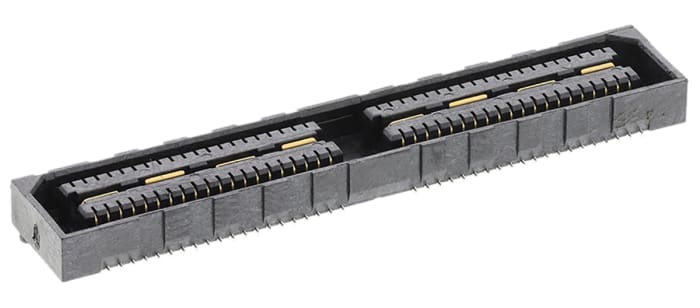

Samtec QSE Series Straight Surface PCB Socket, 80-Contact, 2 Row, 0.8 mm Pitch Solder
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
SamtecNumber of Contacts
80
Product Type
PCB Socket
Number of Rows
2
Sub Type
Socket Strip
Pitch
0.8mm
Current
12A
Termination Type
Solder
Housing Material
Liquid Crystal Polymer
Mount Type
Surface
Orientation
Straight
Stacking Height
5mm
Connector System
Board-to-Board
Voltage
225 V
Series
QSE
Minimum Operating Temperature
-55°C
Row Pitch
5.73mm
Maximum Operating Temperature
125°C
Contact Material
Bronze
Contact Plating
Gold
Standards/Approvals
No
Λεπτομέρειες Προϊόντος
QSE Series hi-speed sockets
This range of QSE Series 0.8 mm pitch Sockets have Alignment Pins, gold plated contacts and ground plane and tin plated tails.
0.8mm Board to Board - Samtec
