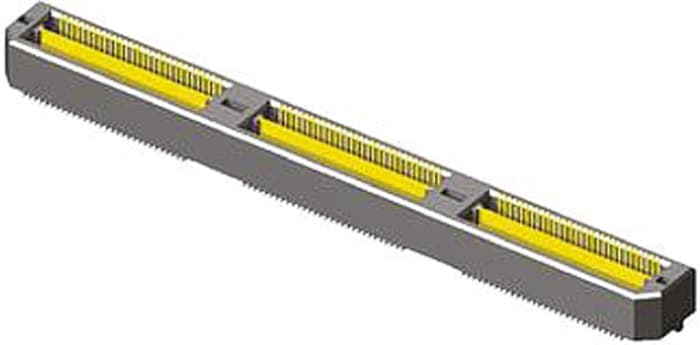

Samtec QTH Series Straight Surface PCB Header, 60 Contact(s), 0.5 mm Pitch, 2 Row(s), Shrouded
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
SamtecSeries
QTH
Product Type
PCB Header
Pitch
0.5mm
Current
1A
Number of Contacts
60
Number of Rows
2
Orientation
Straight
Shrouded/Unshrouded
Shrouded
Mount Type
Surface
Connector System
Board-to-Board
Contact Material
Phosphor Bronze
Contact Plating
Gold
Row Pitch
0.5mm
Termination Type
Solder
Contact Gender
Male
Standards/Approvals
No
Voltage
125 V
Λεπτομέρειες Προϊόντος
QTH Series High Speed Ground Plane Header
These Board to Board QTH Series SMT 0.5 mm pitch High Speed Ground Plane Headers have 0.25 μm Gold plated contacts and Ground Plane with Matte Tin plated tails. This range of Board- to-Board QTH Series SMT 0.5 mm pitch High Speed Ground Plane Headers are available with various body heights which gives a range of stack heights when mated with the corresponding QSH Series Sockets, see stock number 767-8701 typical. The design of this range of Board to Board QTH Series SMT 0.5 mm pitch High Speed Ground Plane Headers includes Alignment Pins.
0.5mm Pitch -Samtec
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 498,60
€ 24,93 Μονάδας (διαθέσιμο σε ένα κουτί) (Exc. Vat)Χωρίς Φ.Π.Α
€ 618,26
€ 30,91 Μονάδας (διαθέσιμο σε ένα κουτί) Με Φ.Π.Α
Συσκευασία Παραγωγής (Κουτί)
20
€ 498,60
€ 24,93 Μονάδας (διαθέσιμο σε ένα κουτί) (Exc. Vat)Χωρίς Φ.Π.Α
€ 618,26
€ 30,91 Μονάδας (διαθέσιμο σε ένα κουτί) Με Φ.Π.Α
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
Συσκευασία Παραγωγής (Κουτί)
20
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
| Quantity Ποσότητα | Τιμή μονάδας |
|---|---|
| 20 - 74 | € 24,93 |
| 75 - 299 | € 24,04 |
| 300 - 599 | € 19,73 |
| 600+ | € 18,38 |
