Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
SamtecNumber of Contacts
20
Product Type
PCB Socket
Sub Type
Locking Socket Strip
Number of Rows
2
Pitch
1.27mm
Current
3.2A
Termination Type
Solder
Housing Material
Liquid Crystal Polymer
Mount Type
Surface
Orientation
Straight
Stacking Height
12mm
Connector System
Board-to-Board, Cable
Voltage
250V
Series
SFML
Minimum Operating Temperature
-55°C
Row Pitch
1.27mm
Maximum Operating Temperature
125°C
Contact Material
Beryllium Copper Alloy
Contact Plating
Gold
Contact Gender
Female
Standards/Approvals
No
Λεπτομέρειες Προϊόντος

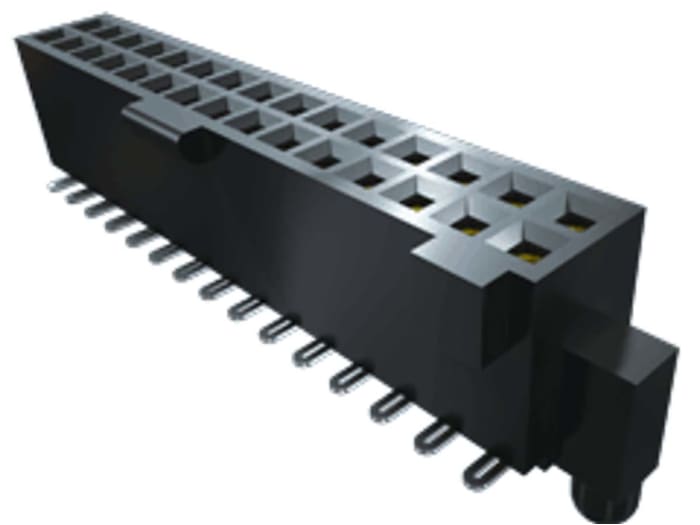

The Samtec SFML series high-reliability locking socket strip is a 20 pin connector. It has a pole pitch of 1.27 mm. The Insulation material used is of black liquid crystal polymer.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
€ 399,35
€ 11,41 Μονάδας (Σε μία ράγα των 35) (Exc. Vat)Χωρίς Φ.Π.Α
€ 495,19
€ 14,148 Μονάδας (Σε μία ράγα των 35) Με Φ.Π.Α
35
€ 399,35
€ 11,41 Μονάδας (Σε μία ράγα των 35) (Exc. Vat)Χωρίς Φ.Π.Α
€ 495,19
€ 14,148 Μονάδας (Σε μία ράγα των 35) Με Φ.Π.Α
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
35
