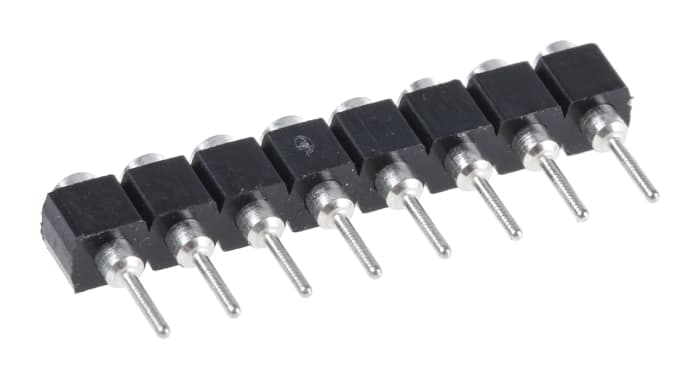

Samtec SS Series Straight Through Hole PCB Socket, 8-Contact, 1 Row, 2.54 mm Pitch Solder
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
SamtecNumber of Contacts
8
Product Type
PCB Socket
Number of Rows
1
Sub Type
Board-to-Board
Pitch
2.54mm
Current
12A
Termination Type
Solder
Housing Material
Liquid Crystal Polymer
Mount Type
Through Hole
Orientation
Straight
Connector System
Board-to-Board
Series
SS
Minimum Operating Temperature
-55°C
Contact Gender
Female
Maximum Operating Temperature
125°C
Contact Material
Beryllium Copper Alloy
Contact Plating
Tin
Standards/Approvals
RoHS
Λεπτομέρειες Προϊόντος
Precision Screw Machined 2.54mm Socket Strips - SS Series
SS series board to board through hole single row precision screw machined socket strips with a 2.54mm pitch, 3.18mm tail length and a non-flush design. The body of these SS series board-to-board PCB screw machined socket strips is made from black glass filled polyester and the contacts are made from beryllium copper with a choice of tin or gold plating. The temperature range at which these SS series PCB through hole mount precision screw machined socket strips can be used is -55 to +125°C.
Part numbers SS-XXX-T-X-X have 0.76μm gold plated contacts and a tin shell.
Part numbers SS-XXX-TT-X-X have tin plated contacts and tin plated shell.
2.54mm Board to Board and Wire to Board - Samtec
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
€ 13,60
€ 1,36 Μονάδας (διαθέσιμο σε μία ράγα) (Exc. Vat)Χωρίς Φ.Π.Α
€ 16,86
€ 1,69 Μονάδας (διαθέσιμο σε μία ράγα) Με Φ.Π.Α
Συσκευασία Παραγωγής (Ράγα)
10
€ 13,60
€ 1,36 Μονάδας (διαθέσιμο σε μία ράγα) (Exc. Vat)Χωρίς Φ.Π.Α
€ 16,86
€ 1,69 Μονάδας (διαθέσιμο σε μία ράγα) Με Φ.Π.Α
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
Συσκευασία Παραγωγής (Ράγα)
10
| Quantity Ποσότητα | Τιμή μονάδας |
|---|---|
| 10 - 24 | € 1,36 |
| 25 - 99 | € 1,25 |
| 100 - 499 | € 1,10 |
| 500+ | € 0,99 |
