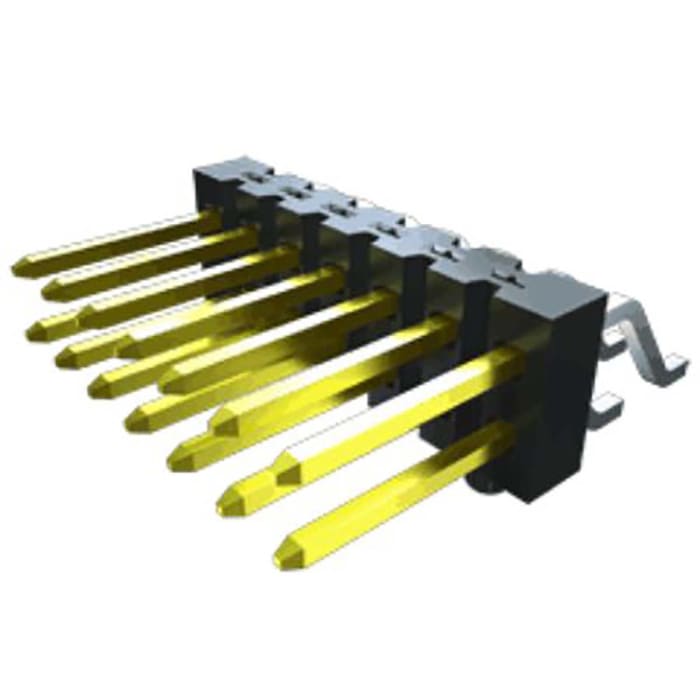

Samtec TSM Series Vertical Surface Pin Header, 14 Contact(s), 2.54 mm Pitch, 2 Row(s), Unshrouded
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
SamtecSeries
TSM
Product Type
Pin Header
Pitch
2.54mm
Number of Contacts
14
Housing Material
Liquid Crystal Polymer
Number of Rows
2
Orientation
Vertical
Shrouded/Unshrouded
Unshrouded
Mount Type
Surface
Connector System
Board-to-Board
Contact Material
Phosphor Bronze
Contact Plating
Gold or Tin
Minimum Operating Temperature
-55°C
Row Pitch
2.54mm
Termination Type
Solder
Contact Gender
Male
Maximum Operating Temperature
125°C
Standards/Approvals
No
Voltage
475 V
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
€ 131,20
€ 4,10 Μονάδας (Σε μία ράγα των 32) (Exc. Vat)Χωρίς Φ.Π.Α
€ 162,69
€ 5,084 Μονάδας (Σε μία ράγα των 32) Με Φ.Π.Α
32
€ 131,20
€ 4,10 Μονάδας (Σε μία ράγα των 32) (Exc. Vat)Χωρίς Φ.Π.Α
€ 162,69
€ 5,084 Μονάδας (Σε μία ράγα των 32) Με Φ.Π.Α
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
32
| Quantity Ποσότητα | Τιμή μονάδας | Per Ράγα |
|---|---|---|
| 32 - 128 | € 4,10 | € 131,20 |
| 160 - 288 | € 3,92 | € 125,44 |
| 320+ | € 3,76 | € 120,32 |
