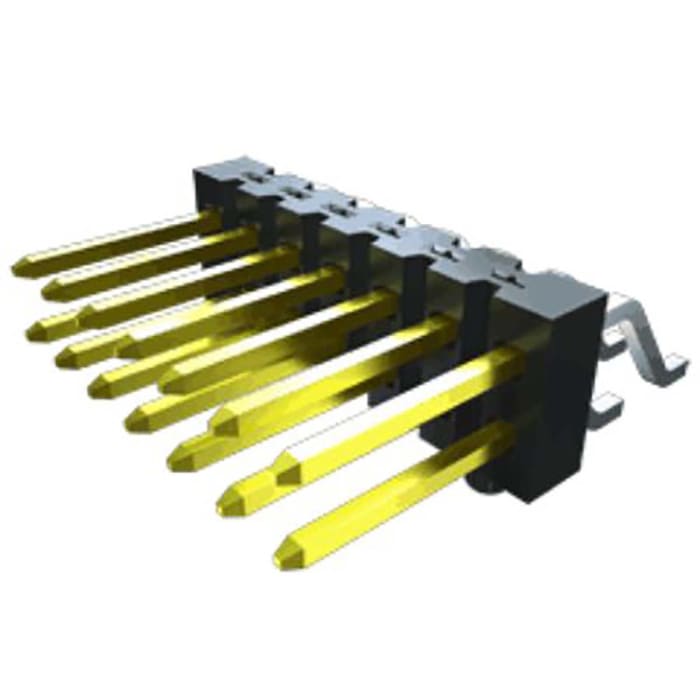

Samtec TSM Series Right Angle Surface Pin Header, 30 Contact(s), 2.54 mm Pitch, 2 Row(s), Unshrouded
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
SamtecSeries
TSM
Product Type
Pin Header
Pitch
2.54mm
Number of Contacts
30
Housing Material
Liquid Crystal Polymer
Number of Rows
2
Orientation
Right Angle
Shrouded/Unshrouded
Unshrouded
Mount Type
Surface
Connector System
Board-to-Board
Contact Material
Phosphor Bronze
Contact Plating
Gold or Tin
Minimum Operating Temperature
-55°C
Row Pitch
2.54mm
Termination Type
Solder
Contact Gender
Male
Maximum Operating Temperature
125°C
Standards/Approvals
No
Voltage
475 V
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
€ 112,56
€ 8,04 Μονάδας (Σε μία ράγα των 14) (Exc. Vat)Χωρίς Φ.Π.Α
€ 139,57
€ 9,97 Μονάδας (Σε μία ράγα των 14) Με Φ.Π.Α
14
€ 112,56
€ 8,04 Μονάδας (Σε μία ράγα των 14) (Exc. Vat)Χωρίς Φ.Π.Α
€ 139,57
€ 9,97 Μονάδας (Σε μία ράγα των 14) Με Φ.Π.Α
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
14
| Quantity Ποσότητα | Τιμή μονάδας | Per Ράγα |
|---|---|---|
| 14 - 56 | € 8,04 | € 112,56 |
| 70 - 126 | € 7,39 | € 103,46 |
| 140+ | € 6,76 | € 94,64 |
