Schaffner, FN2070 16A 250 V ac/dc DC → 400Hz, Chassis Mount EMI Filter, Fast-On, Single Phase

Κωδικός Προϊόντος της RS: 219-2965Κατασκευαστής: SchaffnerΚωδικός Κατασκευαστή: FN2070-16-06
brand-logo
Προβολή όλων σε Power Line Filters

Τεχνικό φυλλάδιο

Προδιαγραφές

Brand

Schaffner

Maximum Current Rating

16A

Maximum Voltage Rating

250 V ac/dc

Mounting Type

Chassis Mount

Termination Style

Fast-On

Number of Phases

1

Series

FN2070

Number of Stages

Two Stage

Operating Frequency

DC → 400Hz

Length

85.5mm

Depth

119mm

Capacitance

1 μF, 4.7nF

Height

57.6mm

Inductance

2.8 mH

Dimensions

85.5 x 119 x 57.6mm

Minimum Operating Temperature

-25°C

Leakage Current

0.734 mA

Maximum Operating Temperature

+100°C

Resistance

220kΩ

Λεπτομέρειες Προϊόντος

FN 2070 Series

Schaffner's FN2070 two-stage filters are designed for easy and fast chassis mounting. All filters provide a high conducted attenuation performance based on chokes with high saturation resistance and excellent thermal behaviour.

Can be used in a wide range of applications such as electrical and electronic equipment, building automation, industrial applications, machinery, medical equipment and various noisy applications requiring good filter performance.

Approvals

UL recognised, CSA Certified, VDE

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more
Μπορεί να σας ενδιαφέρει

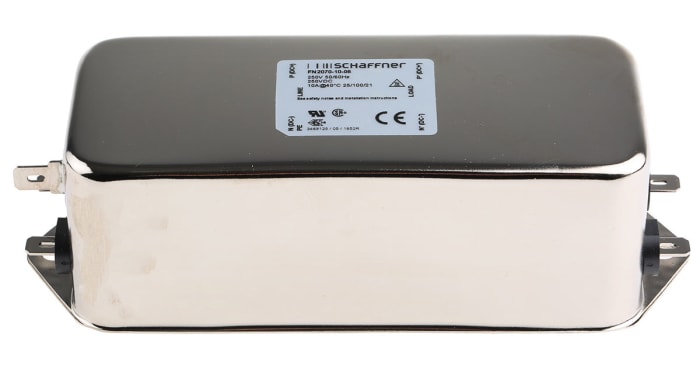

Schaffner, FN2070 10A 250 V ac/dc 400Hz, Chassis Mount EMI Filter, Fast-On, Single Phase
