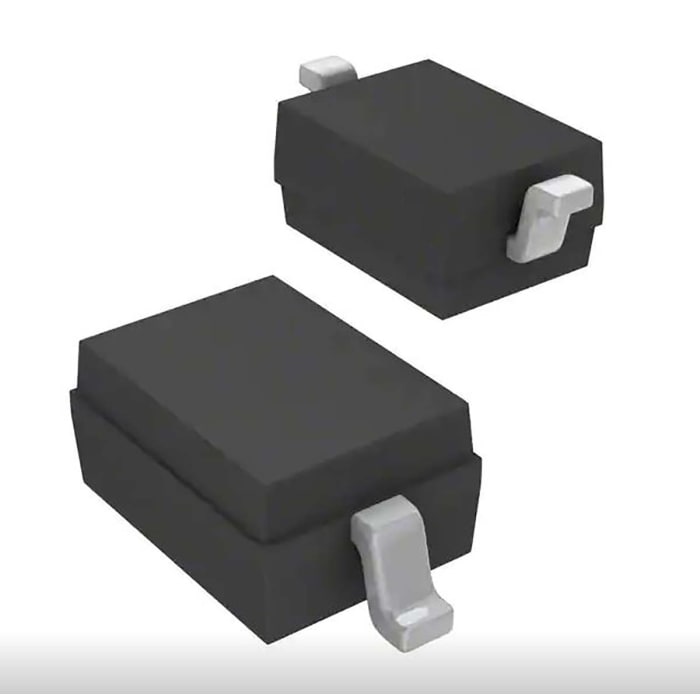

STMicroelectronics 1-Element Uni-Directional TVS Diode, 2-Pin SOD-323

Κωδικός Προϊόντος της RS: 202-4770Κατασκευαστής: STMicroelectronicsΚωδικός Κατασκευαστή: ESDA051-1JY
brand-logo
Προβολή όλων σε TVS Diodes

Τεχνικό φυλλάδιο

Προδιαγραφές

Brand

STMicroelectronics

Diode Configuration

Single

Product Type

TVS Diode

Direction Type

Uni-Directional

Minimum Breakdown Voltage Vbr

6.2V

Mount Type

Surface

Package Type

SOD-323

Pin Count

2

Clamping Voltage VC

12.8V

Minimum Operating Temperature

-55°C

Maximum Peak Pulse Current Ippm

20A

ESD Protection

Yes

Number of Elements per Chip

1

Maximum Operating Temperature

150°C

Width

1.45 mm

Height

1.17mm

Length

1.8mm

Standards/Approvals

IEC, RoHS

Series

ESDA051-1JY

Maximum Reverse Leakage Current

50nA

Automotive Standard

AEC-Q101
