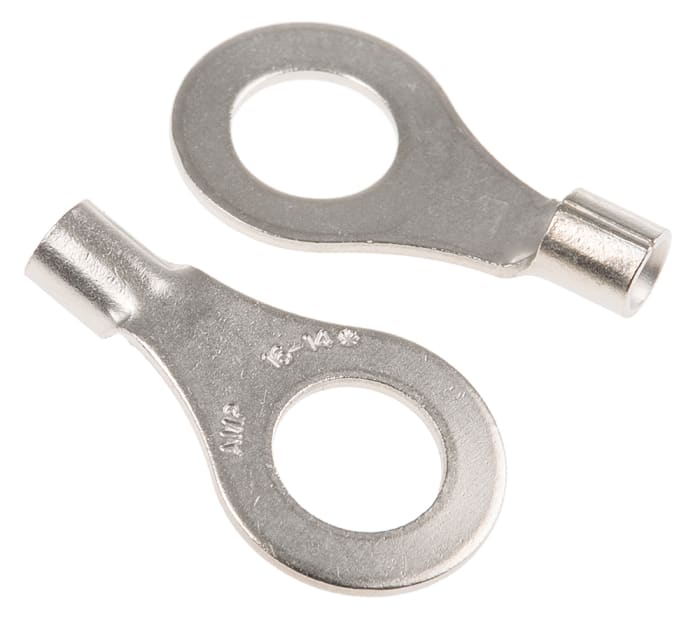

TE Connectivity, STRATO-THERM Uninsulated Ring Terminal, M6 Stud Size 16 AWG 14 AWG Wire Size
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
TE ConnectivitySeries
STRATO-THERM
Product Type
Ring Terminal
Insulation
Uninsulated
Outer Ring Diameter
11.89mm
Inner Ring Diameter
6.73mm
Maximum Wire Size AWG
14 AWG
Minimum Wire Size AWG
16 AWG
Overall Length
21.72mm
Stud Size
M6
Contact Material
Nickel
Contact Plating
Nickel
Standards/Approvals
IEC 61810, IEC 60068-2-27, RoHS
Maximum Operating Temperature
649°C
Χώρα Προέλευσης
United States
Λεπτομέρειες Προϊόντος
TE Connectivity SOLISTRAND STRATO-THERM High Temperature Ring Tongue Crimp Terminals
SOLISTRAND STRATO-THERM high temperature ring tongue crimp terminals for use where operating temperatures prevent standard insulated crimps being used. These STRATO-THERM high temperature ring tongue crimp terminals are made from solid nickel and designed to terminate solid and/or stranded conductors. When the terminal is crimped the wire inside is forced into the serrations or dimples of the barrel to maximise the electrical contact area after crimping. The maximum operating temperature for these STRATO-THERM high temperature ring tongue crimp terminals is 649°C (1200°F).
TE Connectivity STRATO-THERM Terminals and Splices
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
€ 29,80
€ 2,98 Μονάδας (Σε ένα πακέτο των 10) (Exc. Vat)Χωρίς Φ.Π.Α
€ 36,95
€ 3,695 Μονάδας (Σε ένα πακέτο των 10) Με Φ.Π.Α
10
€ 29,80
€ 2,98 Μονάδας (Σε ένα πακέτο των 10) (Exc. Vat)Χωρίς Φ.Π.Α
€ 36,95
€ 3,695 Μονάδας (Σε ένα πακέτο των 10) Με Φ.Π.Α
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
10
| Quantity Ποσότητα | Τιμή μονάδας | Per Πακέτο |
|---|---|---|
| 10 - 40 | € 2,98 | € 29,80 |
| 50 - 240 | € 2,87 | € 28,70 |
| 250+ | € 2,85 | € 28,50 |
