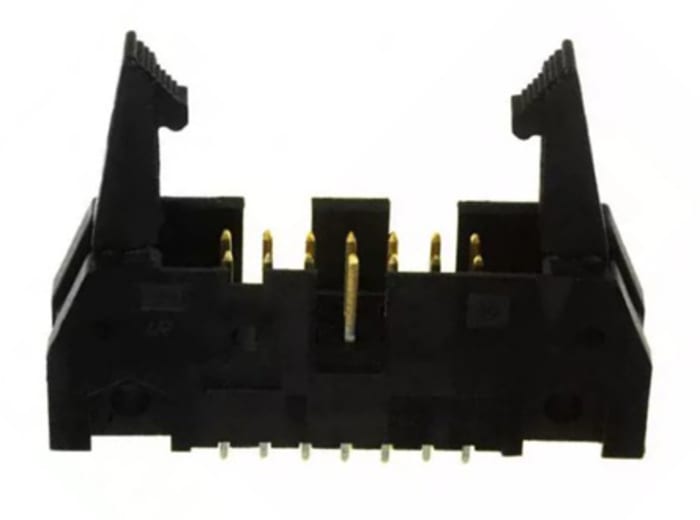

TE Connectivity AMP LATCH Series Straight PCB Header, 14 Contact(s), 2.54mm Pitch, 2 Row(s)

RS Stock No.: 745-4909Brand: TE ConnectivityManufacturers Part No.: 5102321-2
brand-logo
View all in PCB Headers

Technical Document

Specifications

Brand

TE Connectivity

Series

AMP LATCH

Pitch

2.54mm

Number Of Contacts

14

Number Of Rows

2

Body Orientation

Straight

Connector System

Wire to Board

Termination Method

Solder

Contact Material

Brass

Current Rating

1A

Voltage Rating

250 V ac
