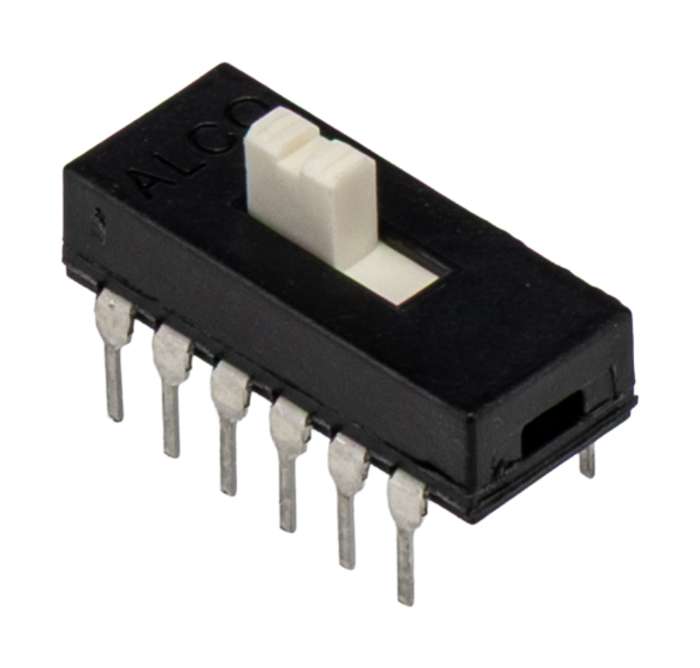

TE Connectivity PCB Slide Switch 4PDT Latching 300 mA @ 115 V dc Slide
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
TE ConnectivityContact Configuration
4PDT
Mounting Type
PCB
Switch Operation
Latching
Contact Current Rating
300 mA @ 115 V dc
Terminal Type
Through Hole
Actuator Type
Slide
Length
17.38mm
Width
7.37mm
Dimensions
17.38 x 7.37mm
Contact Resistance
40mΩ
Voltage Rating
20V
Contact Material
Gold Plated Copper Alloy
Minimum Operating Temperature
-40°C
Operating Temperature Range
-40 → +80°C
Maximum Operating Temperature
+80°C
Actuator Material
Nylon
Λεπτομέρειες Προϊόντος
TE Connectivity Slide Switches - ASE and ASF Series
ASE and ASF series PCB mount slide switches with bifurcated double wipe contacts for telecom grade switching. The ASF series PCB mount slide switches are for auto insertion on standard IC equipment. These PCB mount slide switches are vertical mounting with natural coloured actuators which are side or top oriented. Series ASE slide switches have extended style actuators and the ASF series slide switches have flush style actuators.
