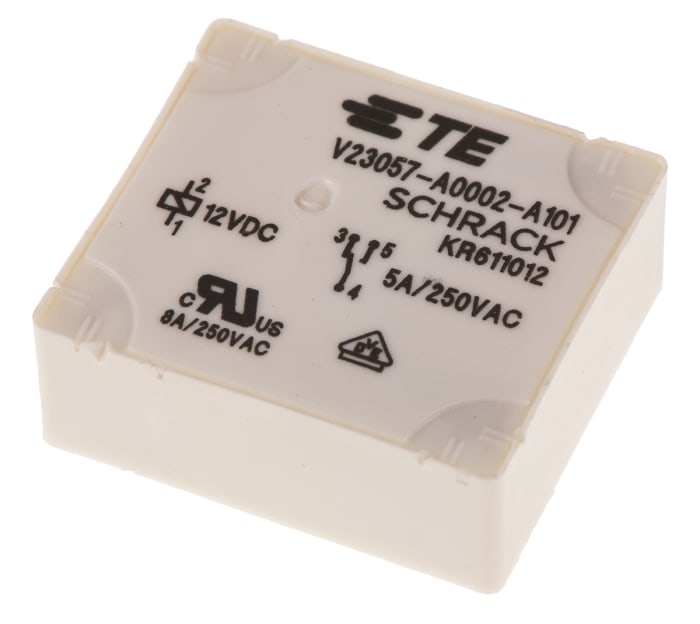

TE Connectivity PCB Mount Non-Latching Relay, 12V dc Coil, 8A Switching Current, SPDT
Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
TE ConnectivityCoil Voltage
12V dc
Contact Configuration
SPDT
Mounting Type
PCB Mount
Switching Current
8A
Terminal Type
Through Hole
Maximum Switching Voltage AC
400V ac
Length
28mm
Coil Resistance
330 Ω
Coil Power
436mW
Height
25.1mm
Contact Material
Silver Alloy
Minimum Operating Temperature
-40°C
Series
E
Life
20000 (Electrical) cycles, 20000000 (Mechanical) cycles
Maximum Operating Temperature
+70°C
Isolation Coil To Contact
4kV rms
Depth
10.4mm
PRICED TO CLEAR
Yes
Maximum Switching Power AC
2 kVA
Application
Power
Χώρα Προέλευσης
Czech Republic
Λεπτομέρειες Προϊόντος
Card E Series
Approvals
UL, C-UL recognised, VDE
