Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
TrumeterProduct Type
Multi-Function Panel Meters
Properties Measured
Current, Voltage, Frequency, Power
Display Type
LCD
Cutout Height
68mm
Cutout Width
68mm
Number of Digits
4
Depth
45mm
Digit Height
14.5mm
Minimum Operating Temperature
-10°C
Maximum Operating Temperature
60°C
Standards/Approvals
UL, RoHS, CE
Meter Type
Electronic
Series
APM
Χώρα Προέλευσης
Malaysia
Λεπτομέρειες Προϊόντος

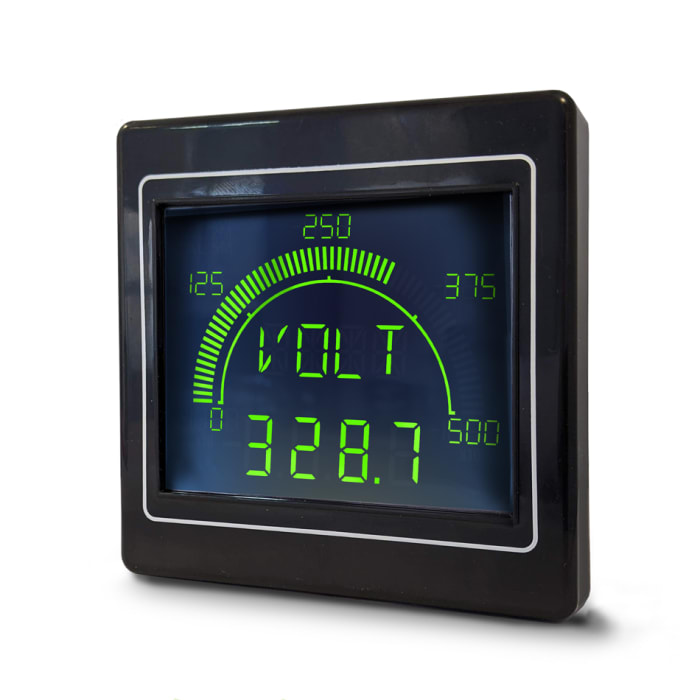

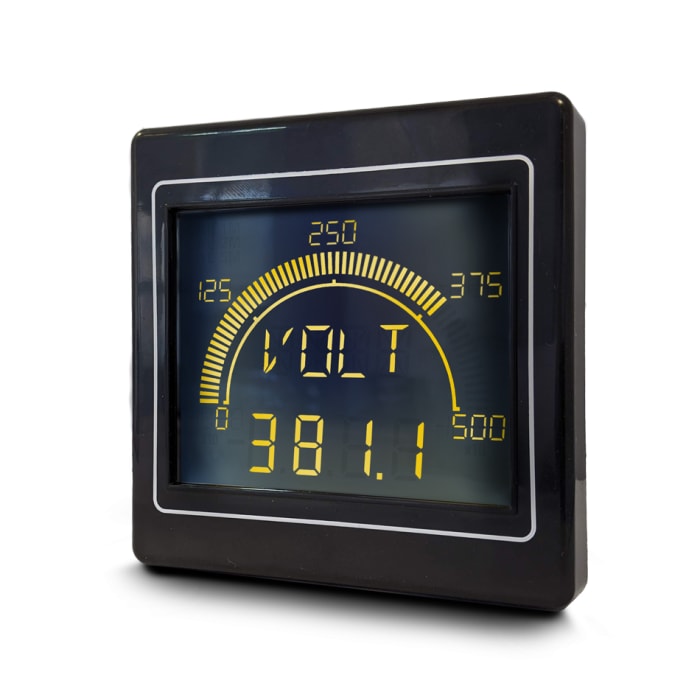

The APM-MAX-M23 is a multi-function panel meter designed for lower voltage applications. It is configurable as a process meter or to measure 0–50mA DC direct, or 0-500mV DC in conjunction with a shunt.

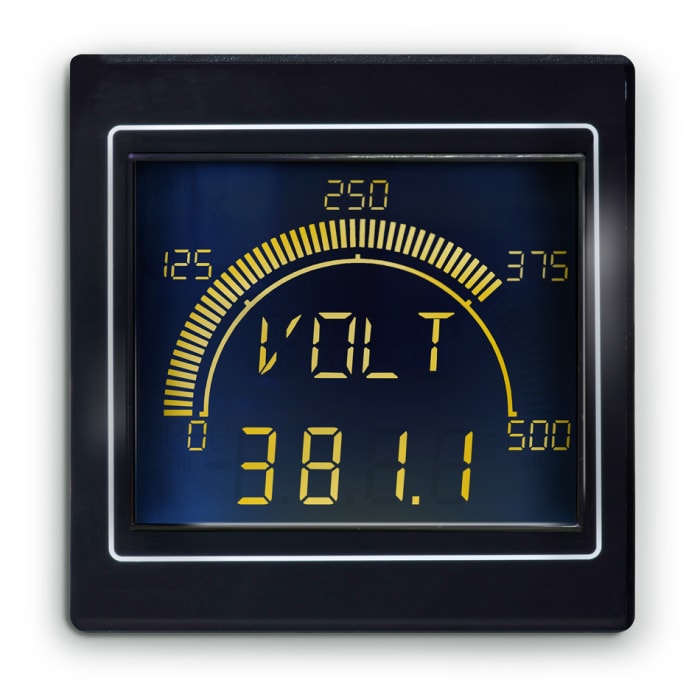

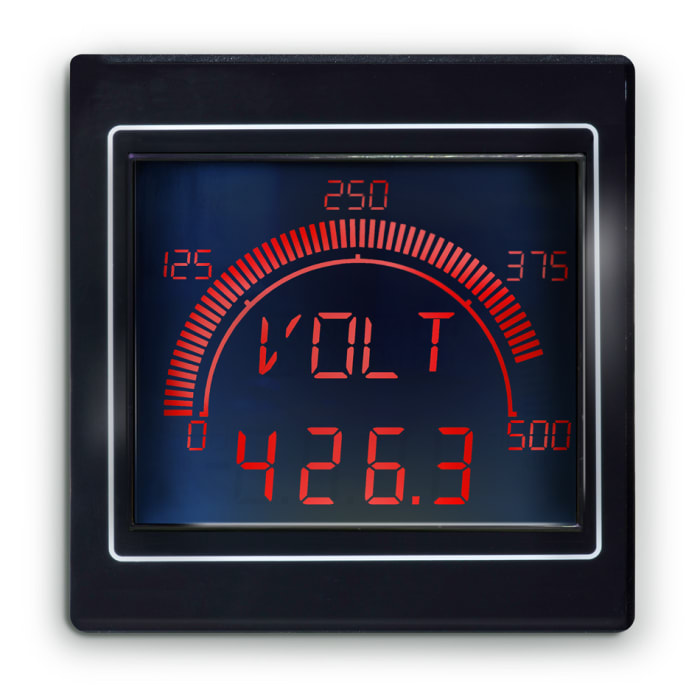

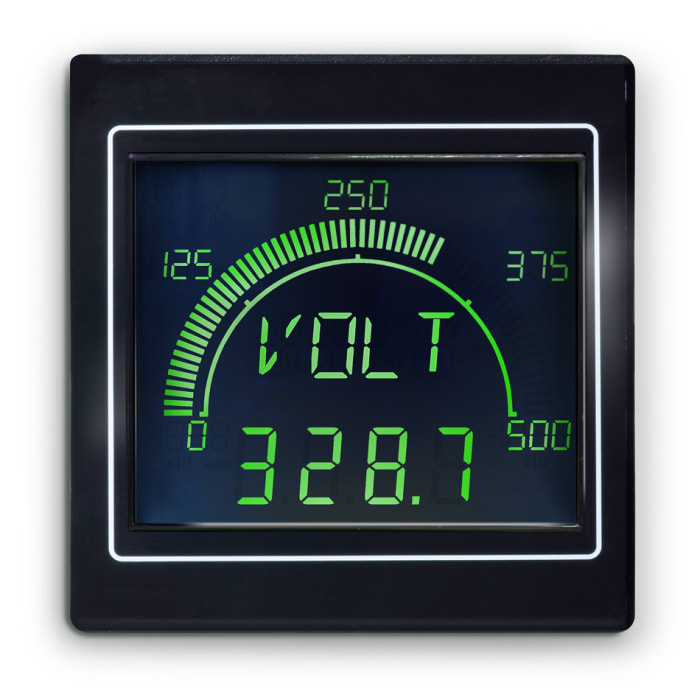

The unique display combines the instant visual representation of analogue with the accuracy of digital for instant recognition and precision measurement. It has a 25% larger screen than our standard APM, incorporating a 60-segment bar graph display, large 4 digit display, separate Starburst display area for messages and alarm info and a full colour RGB dynamic backlight for instant alerts.
Programmable Scaling and Range (min and max), annunciators, backlight colour and intensity, two independent alarm set-points, two independent digital outputs, a 4-20mA analogue output and serial MODBUS® RTU for communication with other components in a system as well as an IP65 rating.
The negative display, for darker environments where high contrast is required, features colour changing figures on a black background.
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
€ 492,64
€ 492,64 Μονάδας (Exc. Vat)Χωρίς Φ.Π.Α
€ 610,87
€ 610,87 Μονάδας Με Φ.Π.Α
1
€ 492,64
€ 492,64 Μονάδας (Exc. Vat)Χωρίς Φ.Π.Α
€ 610,87
€ 610,87 Μονάδας Με Φ.Π.Α
