Τεχνικό φυλλάδιο
Προδιαγραφές
Brand
VishayProduct Type

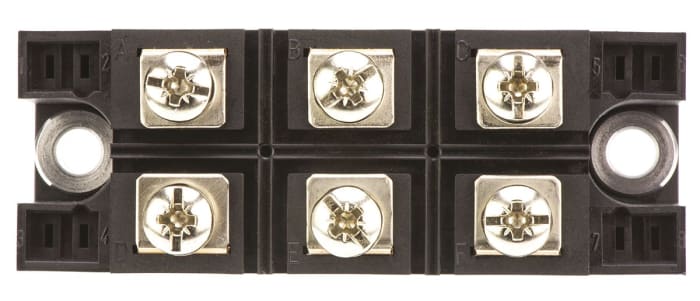

Bridge Rectifier Module
Peak Reverse Repetitive Voltage Vrrm
800V
Mount Type
Panel
Package Type
INT-A-PAK
Number of Phases
3
Pin Count
6
Configuration
Single
Maximum Operating Temperature
150°C
Forward Current If
200A
Minimum Operating Temperature
-40°C
Peak Non-Repetitive Forward Surge Current Ifsm
1.5kA
Peak Forward Voltage Vf
1.49V
Peak Reverse Current Ir
10mA

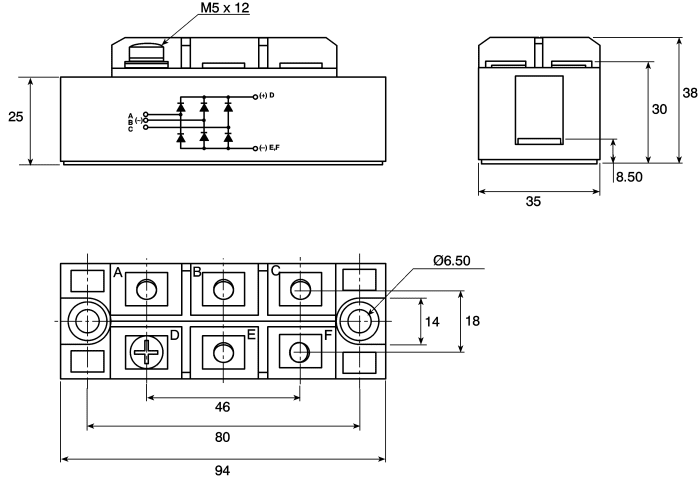

Height
30mm
Length
94mm
Standards/Approvals
No
Series
VS-160MT
Automotive Standard
No
Λεπτομέρειες Προϊόντος
UL file E78996
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
€ 106,76
€ 106,76 Μονάδας (Exc. Vat)Χωρίς Φ.Π.Α
€ 132,38
€ 132,38 Μονάδας Με Φ.Π.Α
1
€ 106,76
€ 106,76 Μονάδας (Exc. Vat)Χωρίς Φ.Π.Α
€ 132,38
€ 132,38 Μονάδας Με Φ.Π.Α
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη
1
| Quantity Ποσότητα | Τιμή μονάδας |
|---|---|
| 1 - 1 | € 106,76 |
| 2 - 4 | € 105,17 |
| 5 - 9 | € 104,59 |
| 10+ | € 102,74 |
