Wurth Elektronik 6876 Series FFC Ribbon Cable, 24-Way, 0.5mm Pitch, 200mm Length

Κωδικός Προϊόντος της RS: 763-5571Κατασκευαστής: Wurth ElektronikΚωδικός Κατασκευαστή: 687624200002
brand-logo

Τεχνικό φυλλάδιο

Προδιαγραφές

Ribbon Cable Type

FFC

Pitch

0.5mm

Terminated/Unterminated

Unterminated

Number of Ways

24

Series

6876

Length

200mm

Width

12.5 mm

Voltage Rating

60 V ac

Sheath Colour

White

Number of Strands

1

Size of Strands

0.035 mm

Operating Temperature Range

-30 → +105 °C

Current Rating

0.5 A

Χώρα Προέλευσης

China

Λεπτομέρειες Προϊόντος

Wurth WR-FFC 0.5mm Pitch Type 1 Flat Flexible (FFC) Jumper Cables

WR-FFC series Type 1 0.5mm pitch flat flexible (FFC) jumper cables for achieving secure, lightweight, low profile, high density space saving board to board connections. These WR-FFC series FFC jumper cables are lightweight and have a high flexibility rating with a flexing test of 180° >20 times. The increased flexibility of these FFC cables enables complex board to board connections to be made in compact and difficult to reach applications. The contacts of the Type 1 FFC cables are on the same side at each end of the cable. A blue PET support tape at either end of the FFC cable helps facilitate ZIF or LIF connections when mated with board mount FPC connectors. These 0.5mm WR-FFC series Type 1 FFC jumper cables are available in standard lengths of 50mm to 200mm with a range of up to 50 circuits

Wurth 0.5mm FPC Connectors and Jumper Cables

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more
Μπορεί να σας ενδιαφέρει

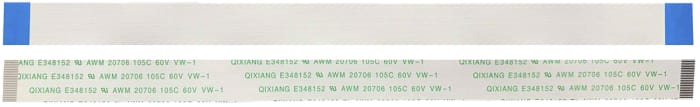

RS PRO FFC Ribbon Cable, 24-Way, 0.5mm Pitch, 200mm Length
€ 4,91Μονάδας (Σε ένα πακέτο των 5) (Exc. Vat)Χωρίς Φ.Π.Α
Molex Premo-Flex Series FFC Ribbon Cable, 24-Way, 0.5mm Pitch, 152mm Length
€ 7,688Μονάδας (Σε ένα πακέτο των 5) (Exc. Vat)Χωρίς Φ.Π.Α

Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη

Παρακαλούμε ελέγξτε ξανά αργότερα.

Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη

€ 4,46

Μονάδας (Σε ένα πακέτο των 5) (Exc. Vat)Χωρίς Φ.Π.Α

€ 5,53

Μονάδας (Σε ένα πακέτο των 5) Με Φ.Π.Α

Wurth Elektronik 6876 Series FFC Ribbon Cable, 24-Way, 0.5mm Pitch, 200mm Length

€ 4,46

Μονάδας (Σε ένα πακέτο των 5) (Exc. Vat)Χωρίς Φ.Π.Α

€ 5,53

Μονάδας (Σε ένα πακέτο των 5) Με Φ.Π.Α

Wurth Elektronik 6876 Series FFC Ribbon Cable, 24-Way, 0.5mm Pitch, 200mm Length
Ημερομηνία αποθέματος προσωρινά μη διαθέσιμη

Αγοράστε μαζικά

Quantity ΠοσότηταΤιμή μονάδαςPer Πακέτο
5 - 70€ 4,46€ 22,30
75 - 245€ 4,01€ 20,05
250 - 495€ 3,43€ 17,15
500 - 1245€ 3,30€ 16,50
1250+€ 3,18€ 15,90
